Texas Instruments
TPS54020RUWT
TPS54020RUWT
Regular price
$2.56 USD
Regular price
Sale price
$2.56 USD
Unit price
per
Couldn't load pickup availability

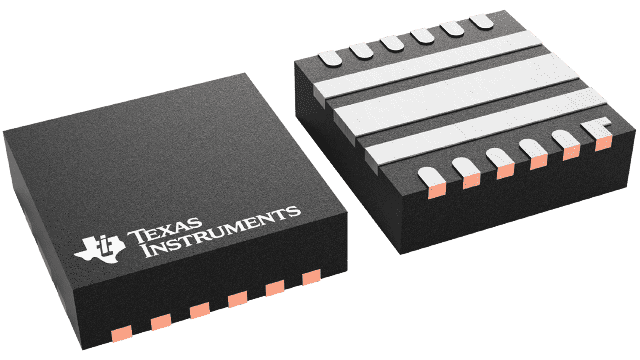

TPS54020RUWT Texas Instruments - Yeehing Electronics
4.5-V to 17-V, 10-A synchronous SWIFT™ buck converter with out-of-phase synchronization
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 6.742 |
| 100 — 249 | 5.496 |
| 250 — 999 | 4.32 |
| 1,000 + | 2.56 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-15 |
| Output Voltage | 0.6 V to 5 V |
| Output Current | 10 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 17 V |
| Topology | Buck |
| Input Voltage MIN | 4.5 V |
| Switching Frequency | 200 kHz to 1.2 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 150 C |
| Series | TPS54020 |
| Packaging | Reel |
| Input Voltage | 4.5 V to 17 V |
| Operating Temperature Range | - 40 C to + 150 C |
| Product | Voltage Regulators |
| Type | Synchronous Step-Down Converter |
| Brand | Texas Instruments |
| Development Kit | TPS54020EVM-082 |
| Operating Supply Current | 600 uA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 4.5 V |
| Tradename | SWIFT |
| Unit Weight | 0.001266 oz |
For more information, please refer to datasheet
Documents
| TPS54020RUWT Datasheet |
More Information
The TPS54020 is a 10-A, 4.5-V to 17-V input SWIFT converter. The innovative 3.5-mm × 3.5-mm HotRod package optimizes high-density step-down designs. The TPS54020 is a full-featured converter.
