Texas Instruments
TPS54060MDGQTEP
TPS54060MDGQTEP
Regular price
$1.86 USD
Regular price
Sale price
$1.86 USD
Unit price
per
Couldn't load pickup availability

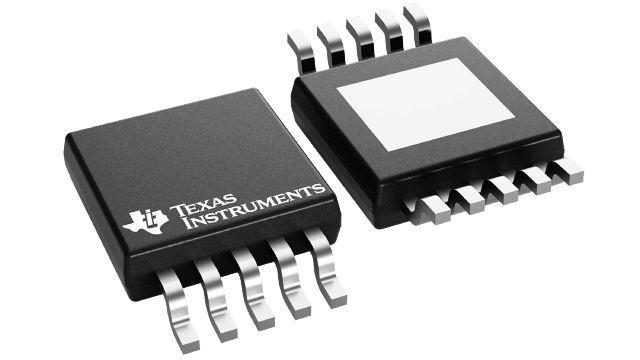

TPS54060MDGQTEP Texas Instruments - Yeehing Electronics
TPS54060-EP- 0.5-A, 60V Step Down DC/DC Converter with Eco-Mode
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.891 |
| 100 — 249 | 3.987 |
| 250 — 999 | 3.134 |
| 1,000 + | 1.86 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | MSOP-PowerPad-10 |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 125 C |
| Series | TPS54060-EP |
| Packaging | Reel |
| Height | 1.1 mm |
| Length | 3 mm |
| Operating Temperature Range | - 55 C to + 125 C |
| Width | 3 mm |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 116 uA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Part # Aliases | V62/14617-01XE |
| Unit Weight | 0.000836 oz |
For more information, please refer to datasheet
Documents
| TPS54060MDGQTEP Datasheet |
More Information
The TPS54060 device is a 60-V, 0.5-A, step-down regulator with an integrated high-side MOSFET. Current mode control provides simple external compensation and flexible component selection. A low-ripple pulse skip mode reduces the no load, regulated output supply current to 116 µA. Using the enable pin, shutdown supply current is reduced to 1.3 µA when the enable pin is low.
