Texas Instruments

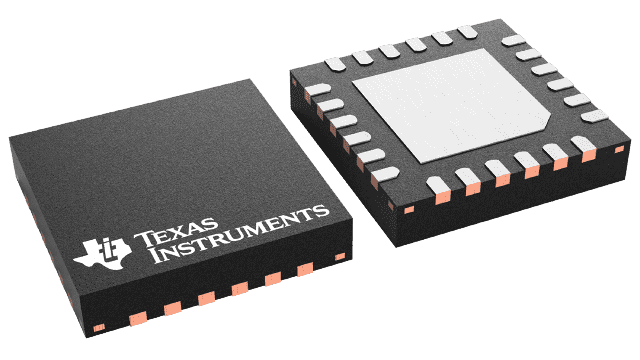

TPS54116QRTWRQ1
TPS54116QRTWRQ1
Regular price
$1.54 USD
Regular price
Sale price
$1.54 USD
Unit price
per
Couldn't load pickup availability
TPS54116QRTWRQ1 Texas Instruments - Yeehing Electronics
Automotive DDR Power Solution with 4-A, 2-MHz VDDQ DC/DC Converter, 1-A VTT LDO and VTTREF
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.048 |
| 100 — 249 | 3.3 |
| 250 — 999 | 2.594 |
| 1,000 + | 1.54 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-24 |
| Output Voltage | 600 mV to 4.5 V |
| Output Current | 4 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 6 V |
| Topology | Buck |
| Input Voltage MIN | 2.95 V |
| Switching Frequency | 100 kHz to 2.5 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Qualification | AEC-Q100 |
| Series | TPS54116-Q1 |
| Packaging | Reel |
| Input Voltage | 2.95 V to 6 V |
| Operating Temperature Range | - 40 C to + 125 C |
| Quiescent Current | 650 uA |
| Type | Synchronous Step Down Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Moisture Sensitive | Yes |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 2.95 V |
| Unit Weight | 0.001411 oz |
For more information, please refer to datasheet
Documents
| TPS54116QRTWRQ1 Datasheet |
More Information
The TPS54116-Q1 device is a full featured 6-V, 4-A, synchronous step down converter with two integrated MOSFETs and 1-A sink/source double data rate (DDR) VTT termination regulator with VTTREF buffered reference output.
