Texas Instruments

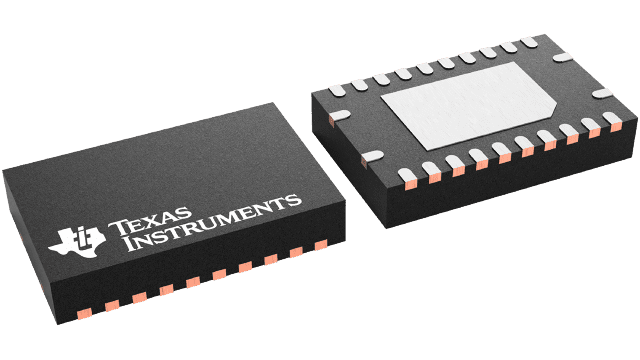

TPS54120RGYR
TPS54120RGYR
Regular price
$0.95 USD
Regular price
Sale price
$0.95 USD
Unit price
per
Couldn't load pickup availability
TPS54120RGYR Texas Instruments - Yeehing Electronics
Low-Noise 1A Power Supply with Integrated DC-DC Converter and Low-Dropout Regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.737 |
| 100 — 249 | 2.398 |
| 250 — 999 | 1.682 |
| 1,000 + | 0.95 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-24 |
| Output Voltage | 0.8 V to 6 V |
| Output Current | 1 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 17 V |
| Topology | Buck |
| Input Voltage MIN | 4.5 V |
| Switching Frequency | 1.2 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | TPS54120 |
| Packaging | Reel |
| Input Voltage | 4.5 V to 17 V |
| Operating Temperature Range | - 40 C to + 125 C |
| Product | Voltage Regulators |
| Type | Voltage Converter |
| Brand | Texas Instruments |
| Development Kit | TPS54120EVM-103 |
| Moisture Sensitive | Yes |
| Operating Supply Current | 40 uA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.001926 oz |
For more information, please refer to datasheet
Documents
| TPS54120RGYR Datasheet |
More Information
The TPS54120 combines the high-efficiency of a step-down switching (dc-dc) converter with a high power-supply rejection (PSR), low-noise, low-dropout regulator (LDO) to provide an ultra low-noise power supply that delivers quiet power rails to noise-sensitive applications.
