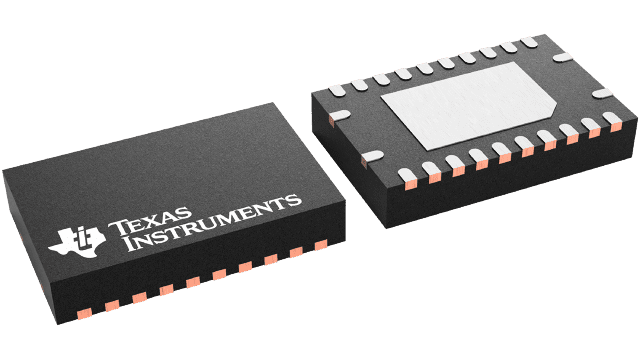

TPS54120RGYT Texas Instruments - Yeehing Electronics

Low-Noise 1A Power Supply with Integrated DC-DC Converter and Low-Dropout Regulator

Pricing (USD)

Quantity	Unit Price
1 — 99	2.992
100 — 249	2.439
250 — 999	1.917
1,000 +	1.14

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	VQFN-24
Output Voltage	0.8 V to 6 V
Output Current	1 A
Number of Outputs	1 Output
Input Voltage MAX	17 V
Topology	Buck
Input Voltage MIN	4.5 V
Switching Frequency	1.2 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	TPS54120
Packaging	Reel
Input Voltage	4.5 V to 17 V
Operating Temperature Range	- 40 C to + 125 C
Product	Voltage Regulators
Type	Voltage Converter
Brand	Texas Instruments
Development Kit	TPS54120EVM-103
Moisture Sensitive	Yes
Operating Supply Current	40 uA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Unit Weight	0.001926 oz

For more information, please refer to datasheet

Documents

TPS54120RGYT Datasheet

More Information

The TPS54120 combines the high-efficiency of a step-down switching (dc-dc) converter with a high power-supply rejection (PSR), low-noise, low-dropout regulator (LDO) to provide an ultra low-noise power supply that delivers quiet power rails to noise-sensitive applications.
