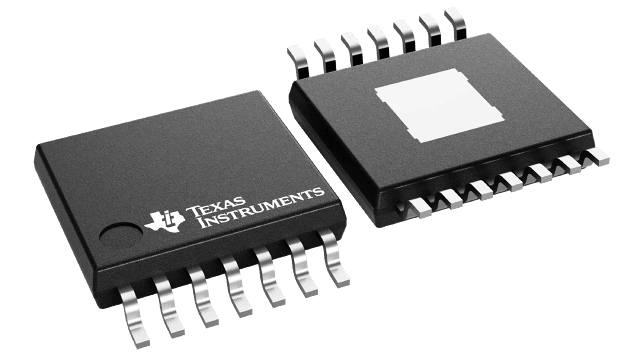

TPS54225PWP Texas Instruments - Yeehing Electronics
4.5 V to 18 V input, 2 A synchronous step-down converter in HTSSOP package
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.85 |
100 — 249 | 1.528 |
250 — 999 | 1.098 |
1,000 + | 0.58 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Switching Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | HTSSOP-14 |
Output Voltage | - 0.1 V to 5.7 V |
Output Current | 2 A |
Number of Outputs | 1 Output |
Input Voltage MAX | 18 V |
Topology | Buck |
Input Voltage MIN | 4.5 V |
Switching Frequency | 700 kHz |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Series | TPS54225 |
Packaging | Reel |
Input Voltage | 4.5 V to 18 V |
Operating Temperature Range | - 40 C to + 85 C |
Product | Voltage Regulators |
Type | Voltage Converter |
Brand | Texas Instruments |
Development Kit | TPS54225EVM-538 |
Load Regulation | 100 mV |
Moisture Sensitive | Yes |
Operating Supply Current | 800 uA |
Product Type | Switching Voltage Regulators |
Factory Pack Quantity | 2000 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.002046 oz |
For more information, please refer to datasheet
Documents
TPS54225PWP Datasheet |
More Information
The TPS54225 is an adaptive on-time D-CAP2™ mode synchronous buck converter. The TPS54225 enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count, low standby current solution. The main control loop for the TPS54225 uses the D-CAP2™ mode control which provides a fast transient response with no external compensation components.
