TPS54225TPWPRQ1 Texas Instruments - Yeehing Electronics

Automotive 4.5V to 18V, 2A Synchronous Buck Converter with DCAP2 Mode

Pricing (USD)

Quantity	Unit Price
1 — 99	2.769
100 — 249	2.427
250 — 999	1.701
1,000 +	1.10

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT

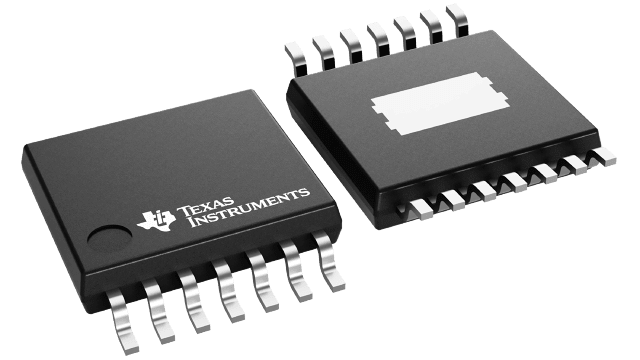

Package / Case	HTSSOP-14
Output Voltage	0.76 V to 5.5 V
Output Current	2 A
Number of Outputs	1 Output
Input Voltage MAX	18 V
Topology	Buck
Input Voltage MIN	4.5 V
Switching Frequency	700 kHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Qualification	AEC-Q100
Series	TPS54225-Q1
Packaging	Reel
Input Voltage	4.5 V to 18 V
Operating Temperature Range	- 40 C to + 105 C
Product	Voltage Regulators
Type	Voltage Converter
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Current	800 uA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	2000
Subcategory	PMIC - Power Management ICs
Tradename	SWIFT
Unit Weight	0.002046 oz

For more information, please refer to datasheet

Documents

TPS54225TPWPRQ1 Datasheet

More Information

The TPS54225-Q1 is an adaptive on-time D-CAP2™ mode synchronous buck converter. The TPS54225-Q1 enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count, low standby current solution. The main control loop for the TPS54225-Q1 uses the D-CAP2™ mode control which provides a fast transient response with no external compensation components.
