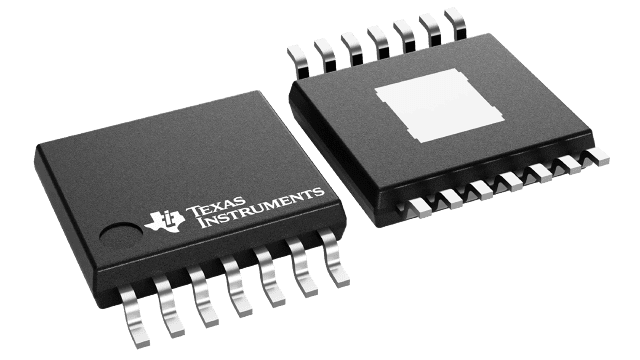

TPS54286PWP Texas Instruments - Yeehing Electronics

4.5V to 28V Input, Dual 2A Output, 600kHz Step-Down Converter with Internal Compensation

Pricing (USD)

Quantity	Unit Price
1 — 99	1.987
100 — 249	1.62
250 — 999	1.273
1,000 +	0.76

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	HTSSOP-14
Output Voltage	0.8 V to 25.2 V
Output Current	2 A
Number of Outputs	2 Output
Input Voltage MAX	28 V
Topology	Buck
Input Voltage MIN	4.5 V
Switching Frequency	600 kHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Series	TPS54286
Packaging	Reel
Input Voltage	4.5 V to 28 V
Operating Temperature Range	- 40 C to + 85 C
Product	Voltage Regulators
Type	Voltage Converter
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Current	1.8 mA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	2000
Subcategory	PMIC - Power Management ICs
Part # Aliases	HPA00443PWPR HPA00547PWPR
Unit Weight	0.002046 oz

For more information, please refer to datasheet

Documents

TPS54286PWP Datasheet

More Information

TPS54283 and TPS54286 are dual output non-synchronous buck converters capable of supporting 2-A output applications that operate from a 4.5-V to 28-V input supply voltage, and require output voltages between 0.8 V and 90% of the input voltage.
