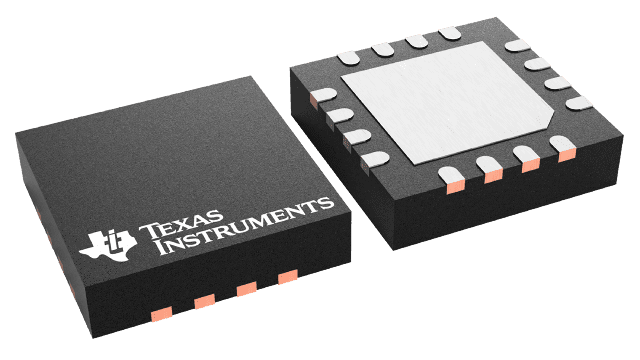

TPS54295RSAR Texas Instruments - Yeehing Electronics
4.5 V to 18 V input, dual 2 A output, synchronous step-down converter, with adjustable soft start
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.959 |
| 100 — 249 | 1.717 |
| 250 — 999 | 1.204 |
| 1,000 + | 0.68 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | QFN-16 |
| Output Voltage | 0.76 V to 7 V |
| Output Current | 2 A |
| Number of Outputs | 2 Output |
| Input Voltage MAX | 18 V |
| Topology | Buck |
| Input Voltage MIN | 4.5 V |
| Switching Frequency | 700 kHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | TPS54295 |
| Packaging | Reel |
| Input Voltage | 4.5 V to 18 V |
| Operating Temperature Range | - 40 C to + 85 C |
| Product | Voltage Regulators |
| Type | Step Down Converter |
| Brand | Texas Instruments |
| Development Kit | TPS54295EVM-057 |
| Moisture Sensitive | Yes |
| Operating Supply Current | 1.3 mA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.001623 oz |
For more information, please refer to datasheet
Documents
| TPS54295RSAR Datasheet |
More Information
The TPS54295 is a dual, adaptive on-time D-CAP2 mode synchronous buck converter. The TPS54295 enables system designers to complete the suite of various end-equipment power bus regulators with a cost effective, low component count, and low standby current solution. The main control loops of the TPS54295 use the D-CAP2 mode control which provides a very fast transient response with no external compensation components. The adaptive on-time control supports seamless transition between PWM mode at higher load conditions and Eco-mode operation at light loads. Eco-mode allows the TPS54295 to maintain high efficiency during lighter load conditions. The TPS54295 is able to adapt to both low equivalent series resistance (ESR) output capacitors such as POSCAP or SP-CAP, and ultra-low ESR ceramic capacitors. The device provides convenient and efficient operation with input voltages from 4.5 V to 18 V.
