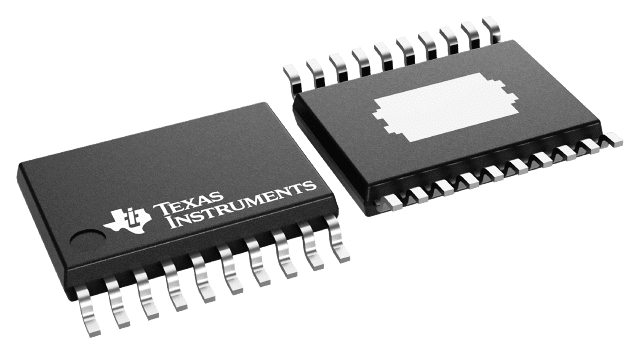

TPS54312PWPR Texas Instruments - Yeehing Electronics

3V to 6V Input, 3A Synchronous Step-Down SWIFT™ Converter with 1.2V Output

Pricing (USD)

Quantity	Unit Price
1 — 99	3.919
100 — 249	3.195
250 — 999	2.511
1,000 +	1.49

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TPS54312PWPR Datasheet

More Information

As members of the SWIFT™ family of DC - DC regulators, the TPS54311, TPS54312, TPS54313, TPS54314, TPS54315 and TPS54316 low-input-voltage high-outputcurrent synchronous-buck PWM converters integrate all required active components. Included on the substrate with the listed features are a true, high performance, voltage error amplifier that provides high performance under transient conditions; an undervoltage-lockout circuit to prevent start-up until the input voltage reaches 3 V; an internally and externally set slow-start circuit to limit in-rush currents; and a powergood output useful for processor/logic reset, fault signaling, and supply sequencing.
