Texas Instruments
TPS54362BQPWPRQ1
TPS54362BQPWPRQ1
Regular price
$1.34 USD
Regular price
Sale price
$1.34 USD
Unit price
per
Couldn't load pickup availability

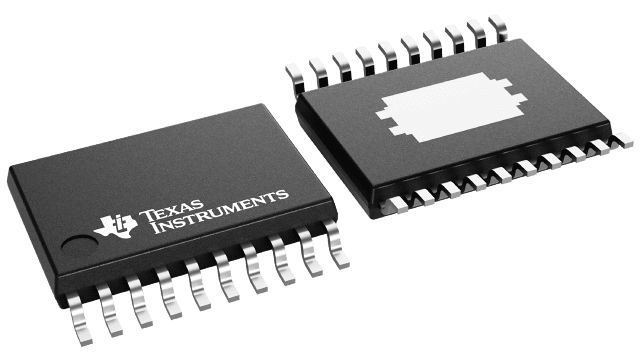

TPS54362BQPWPRQ1 Texas Instruments - Yeehing Electronics
Automotive 3.6V to 48V, 3A Buck Converter with Low Iq and Voltage Supervisor
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.529 |
| 100 — 249 | 2.877 |
| 250 — 999 | 2.261 |
| 1,000 + | 1.34 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-20 |
| Output Voltage | 0.9 V to 18 V |
| Output Current | 3 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 48 V |
| Topology | Buck |
| Input Voltage MIN | 3.6 V |
| Switching Frequency | 200 kHz to 2.2 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Qualification | AEC-Q100 |
| Series | TPS54362-Q1 |
| Packaging | Reel |
| Height | 1.2 mm |
| Input Voltage | 3.6 V to 48 V |
| Length | 5 mm |
| Operating Temperature Range | - 40 C to + 125 C |
| Product | Voltage Regulators |
| Type | Voltage Converter |
| Width | 4.4 mm |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 65 uA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 2000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.002212 oz |
For more information, please refer to datasheet
Documents
| TPS54362BQPWPRQ1 Datasheet |
More Information
The TPS54362-Q1 device is a step-down switch-mode power supply with a low-power mode and a programmable voltage supervisor. Integrated input voltage-line feed-forward topology improves line transient regulation of the voltage-mode buck regulator. The regulator has a cycle-by-cycle current limit. Pulse-skip mode operation under no load reduces the supply current to 65 µA. Using the enable pin reduces the supply shutdown current to 1 µA.
