Texas Instruments
TPS54362HPWP
TPS54362HPWP
Regular price
$95.36 USD
Regular price
Sale price
$95.36 USD
Unit price
per
Couldn't load pickup availability

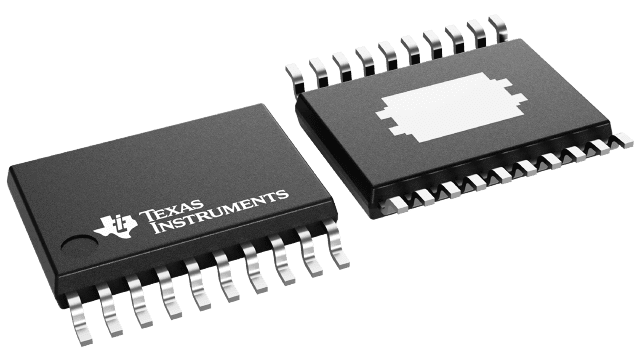

TPS54362HPWP Texas Instruments - Yeehing Electronics
1-A 48-V Step-Down DC/DC Converter with Low Iq
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 136.224 |
| 100 — 249 | 124.872 |
| 250 — 999 | 113.52 |
| 1,000 + | 95.36 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-20 |
| Output Voltage | 0.9 V to 18 V |
| Output Current | 1 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 48 V |
| Topology | Buck |
| Input Voltage MIN | 3.6 V |
| Switching Frequency | 2.2 MHz |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 175 C |
| Series | TPS54362-HT |
| Packaging | Tube |
| Input Voltage | 3.6 V to 48 V |
| Operating Temperature Range | - 55 C to + 175 C |
| Product | Voltage Regulators |
| Type | Voltage Converter |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 65 uA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 90 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.002885 oz |
For more information, please refer to datasheet
Documents
| TPS54362HPWP Datasheet |
More Information
The TPS54362 is a step down switch mode power supply with voltage supervisor. Integrated input voltage line feed forward topology improves line transient regulation of the voltage mode buck regulator. The regulator has a cycle-by cycle current limit. A pulse skip mode operation under no load reduces the supply current to 65 µA. Using the enable pin, the supply shutdown current is reduced to 1 µA.
