Texas Instruments

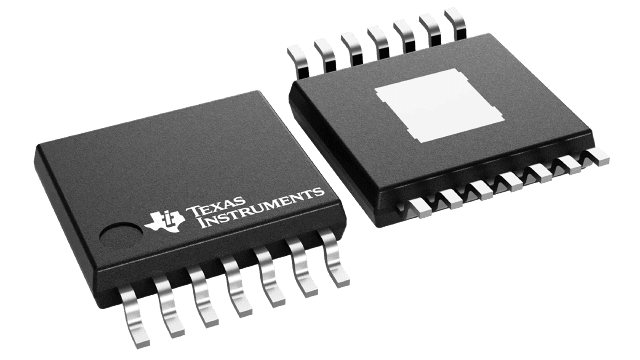

TPS54386PWPR
TPS54386PWPR
Regular price
$0.66 USD
Regular price
Sale price
$0.66 USD
Unit price
per
Couldn't load pickup availability
TPS54386PWPR Texas Instruments - Yeehing Electronics
4.5V to 28V Input, Dual 3A Outputs, 600kHz Step-Down Converter with Internal Compensation
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.737 |
| 100 — 249 | 1.416 |
| 250 — 999 | 1.113 |
| 1,000 + | 0.66 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-14 |
| Output Voltage | 0.8 V to 25.2 V |
| Output Current | 3 A |
| Number of Outputs | 2 Output |
| Input Voltage MAX | 28 V |
| Topology | Buck |
| Input Voltage MIN | 4.5 V |
| Switching Frequency | 600 kHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | TPS54386 |
| Packaging | Reel |
| Input Voltage | 4.5 V to 28 V |
| Operating Temperature Range | - 40 C to + 125 C |
| Product | Voltage Regulators |
| Type | Voltage Converter |
| Brand | Texas Instruments |
| Development Kit | TPS54386EVM |
| Moisture Sensitive | Yes |
| Operating Supply Current | 1.8 mA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 2000 |
| Subcategory | PMIC - Power Management ICs |
| Tradename | SWIFT |
| Unit Weight | 0.002046 oz |
For more information, please refer to datasheet
Documents
| TPS54386PWPR Datasheet |
More Information
The TPS54383 and TPS54386 are dual output, non-synchronous buck converters capable of supporting 3-A output applications that operate from a 4.5-V to 28-V input supply voltage, and require output voltages between 0.8 V and 90% of the input voltage.
