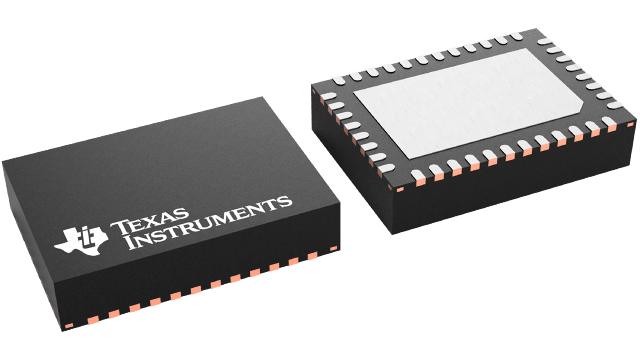

TPS543B20RVFT Texas Instruments - Yeehing Electronics
4-V to 19-V, 25-A synchronous SWIFT™ buck converter with adaptive internal compensation
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 7.021 |
100 — 249 | 5.724 |
250 — 999 | 4.499 |
1,000 + | 2.67 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Switching Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | LQFN-CLIP-40 |
Output Voltage | 0.6 V to 5.5 V |
Output Current | 25 A |
Number of Outputs | 1 Output |
Input Voltage MAX | 19 V |
Topology | Buck |
Input Voltage MIN | 4 V |
Switching Frequency | 300 kHz to 2 MHz |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Series | TPS543B20 |
Packaging | Reel |
Input Voltage | 4 V to 19 V |
Operating Temperature Range | - 40 C to + 125 C |
Type | Synchronous Step-Down Converter |
Brand | Texas Instruments |
Shutdown | Shutdown |
Development Kit | TPS543B20EVM-799 |
Moisture Sensitive | Yes |
Operating Supply Current | 4.3 mA |
Product Type | Switching Voltage Regulators |
Factory Pack Quantity | 250 |
Subcategory | PMIC - Power Management ICs |
Supply Voltage - Min | 4 V |
Tradename | SWIFT |
Unit Weight | 0.006173 oz |
For more information, please refer to datasheet
Documents
TPS543B20RVFT Datasheet |
More Information
The TPS543B20 employs an internally compensated emulated peak-current-mode control, with a clock synchronizable, fixed-frequency modulator for EMI-sensitive POL. The internal integrator and directly amplifying ramp tracking loop eliminate the need for external compensation over a wide range of frequencies thereby making the system design flexible, dense, and simple. Optional API and body braking help improve transient performance by significantly reducing undershoot and overshoot, respectively. Integrated NexFET™ MOSFETs with low-loss switching facilitate high efficiency and deliver up to 25 A in a 5-mm × 7-mm PowerStack™ package with a layout friendly thermal pad. Two TPS543B20 devices can be stacked together to provide up to 50-A point-of-load.
