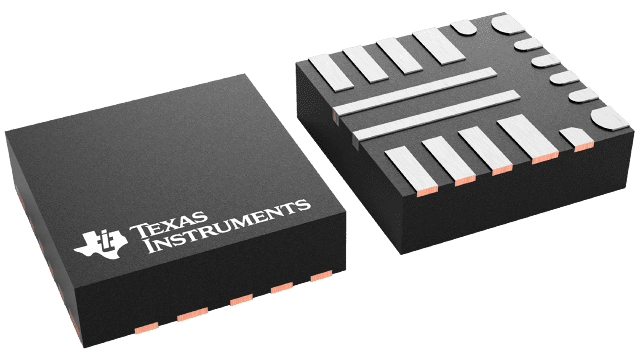

TPS54424RNVR Texas Instruments - Yeehing Electronics
4.5V to 17V Input, Current Mode, 4A Synchronous SWIFT™ Step-Down Converter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.955 |
| 100 — 249 | 1.713 |
| 250 — 999 | 1.201 |
| 1,000 + | 2.06 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-HR-18 |
| Output Voltage | 0.6 V to 12 V |
| Output Current | 4 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 17 V |
| Topology | Buck |
| Input Voltage MIN | 4.5 V |
| Switching Frequency | 200 kHz to 1.6 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 150 C |
| Series | TPS54424 |
| Packaging | Reel |
| Input Voltage | 4.5 V to 17 V |
| Operating Temperature Range | - 40 C to + 150 C |
| Type | Step-Down Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Moisture Sensitive | Yes |
| Operating Supply Current | 580 uA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 4.5 V |
| Tradename | SWIFT |
| Unit Weight | 0.000621 oz |
For more information, please refer to datasheet
Documents
| TPS54424RNVR Datasheet |
More Information
The TPS54424 is a full-featured 17-V (19-V maximum), 4-A synchronous step-down DC/DC converter in a 3.5 mm × 3.5 mm HotRod™ QFN package.
