Texas Instruments
TPS54429PWP
TPS54429PWP
Couldn't load pickup availability

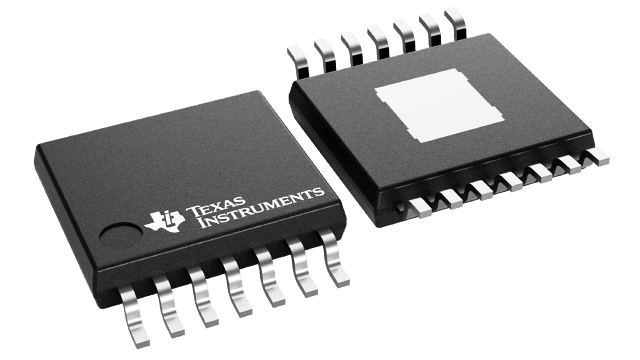

TPS54429PWP Texas Instruments - Yeehing Electronics
7V to 18V Input, 4.5A Synchronous Step-Down DCAP2 Mode Converter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.454 |
| 100 — 249 | 1.274 |
| 250 — 999 | 0.894 |
| 1,000 + | 0.50 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-14 |
| Output Voltage | 0.76 V to 5.5 V |
| Output Current | 4.5 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 18 V |
| Topology | Buck |
| Input Voltage MIN | 7 V |
| Switching Frequency | 700 kHz |
| Minimum Operating Temperature | - 20 C |
| Maximum Operating Temperature | + 85 C |
| Series | TPS54429 |
| Packaging | Tube |
| Input Voltage | 7 V to 18 V |
| Operating Temperature Range | - 20 C to + 85 C |
| Product | Voltage Regulators |
| Type | Voltage Converter |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 850 uA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 90 |
| Subcategory | PMIC - Power Management ICs |
| Tradename | SWIFT |
| Unit Weight | 0.002046 oz |
For more information, please refer to datasheet
Documents
| TPS54429PWP Datasheet |
More Information
The TPS54429 is an adaptive on-time D-CAP2™ mode synchronous buck converter. The TPS54429 enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count, low standby current solution. The main control loop for the TPS54429 uses the D-CAP2™ mode control which provides a very fast transient response with no external compensation components. The TPS54429 also has a proprietary circuit that enables the device to adopt to both low equivalent series resistance (ESR) output capacitors, such as POSCAP or SP-CAP, and ultra-low ESR ceramic capacitors. The device operates from 7-V to 18-V VIN input. The output voltage can be programmed between 0.76 V and 5.5 V. The device also features an adjustable soft start time and a power good function. The TPS54429 is available in the 14-pin HTSSOP package, and designed to operate from –20°C to 85°C.
