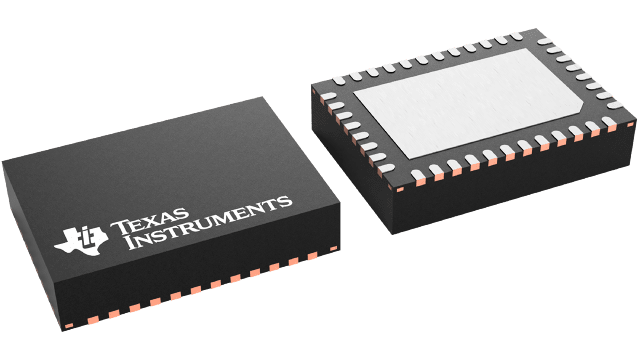

TPS544B20RVFT Texas Instruments - Yeehing Electronics

4.5-V to 18-V, 20-A synchronous SWIFT™ buck converter with PMBus programmability and monitoring

Pricing (USD)

Quantity	Unit Price
1 — 99	8.059
100 — 249	6.57
250 — 999	5.164
1,000 +	3.07

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	E
Mounting Style	SMD/SMT
Package / Case	LQFN-CLIP-40
Output Voltage	0.6 V to 5.5 V
Output Current	20 A, 30 A
Number of Outputs	1 Output
Input Voltage MAX	18 V
Topology	Buck
Input Voltage MIN	4.5 V
Switching Frequency	1 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Series	TPS544B20
Packaging	Reel
Input Voltage	4.5 V to 18 V
Operating Temperature Range	- 40 C to + 85 C
Product	Voltage Regulators
Type	Synchronous Buck Converter
Brand	Texas Instruments
Moisture Sensitive	Yes
Operating Supply Current	8 mA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	4.5 V
Tradename	SWIFT
Unit Weight	0.002610 oz

For more information, please refer to datasheet

Documents

TPS544B20RVFT Datasheet

More Information

The TPS544B20 and TPS544C20 devices are PMBus compatible, non-isolated DC-DC Integrated FET converters, capable of high-frequency operation and delivering 20-A , or 30-A current output from a 5 mm × 7 mm package, enabling high-power density and fast transient performance with minimal PCB area. The PMBus interface provides for converter configuration as well as monitoring of key parameters including output voltage, current and an optional external temperature. High-frequency, low-loss switching, provided by an integrated NexFET power stage and optimized drivers, allows for very high-density power solutions and reduced inductor and filter capacitor sizes. Response to fault conditions can be set to either restart or latch off depending on system requirements.
