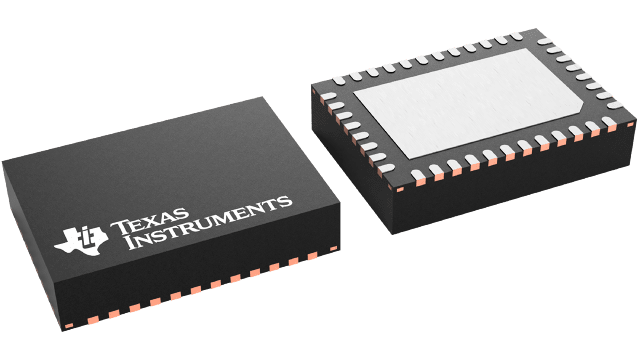

TPS544C20RVFT Texas Instruments - Yeehing Electronics

4.5-V to 18-V, 30-A synchronous SWIFT™ buck converter with PMBus programmability and monitoring

Pricing (USD)

Quantity	Unit Price
1 — 99	8.744
100 — 249	7.128
250 — 999	5.603
1,000 +	3.33

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TPS544C20RVFT Datasheet

More Information

The TPS544B20 and TPS544C20 devices are PMBus compatible, non-isolated DC-DC Integrated FET converters, capable of high-frequency operation and delivering 20-A , or 30-A current output from a 5 mm × 7 mm package, enabling high-power density and fast transient performance with minimal PCB area. The PMBus interface provides for converter configuration as well as monitoring of key parameters including output voltage, current and an optional external temperature. High-frequency, low-loss switching, provided by an integrated NexFET power stage and optimized drivers, allows for very high-density power solutions and reduced inductor and filter capacitor sizes. Response to fault conditions can be set to either restart or latch off depending on system requirements.
