Texas Instruments

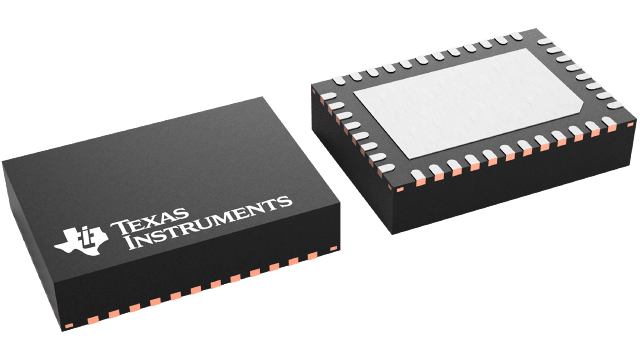

TPS544C25RVFT
TPS544C25RVFT
Couldn't load pickup availability
TPS544C25RVFT Texas Instruments - Yeehing Electronics
4.5-V to 18-V, 30-A synchronous SWIFT™ buck converter with PMBus and frequency sync
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 8.744 |
| 100 — 249 | 7.128 |
| 250 — 999 | 5.603 |
| 1,000 + | 3.33 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | E |
| Mounting Style | SMD/SMT |
| Package / Case | LQFN-CLIP-40 |
| Output Voltage | 500 mV to 5.5 V |
| Output Current | 30 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 18 V |
| Topology | Buck |
| Input Voltage MIN | 4.5 V |
| Switching Frequency | 500 kHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | TPS544C25 |
| Packaging | Reel |
| Height | 1.52 mm |
| Input Voltage | 4.5 V to 18 V |
| Length | 7.15 mm |
| Operating Temperature Range | - 40 C to + 125 C |
| Type | Synchronous Buck Converter |
| Width | 5.15 mm |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Load Regulation | 0.5 % |
| Moisture Sensitive | Yes |
| Operating Supply Current | 7.7 mA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 4.5 V |
| Tradename | SWIFT |
| Unit Weight | 0.005510 oz |
For more information, please refer to datasheet
Documents
| TPS544C25RVFT Datasheet |
More Information
The TPS544x25 devices are PMBus 1.2 Compliant, non-isolated DC-DC converters with integrated FETs, capable of high-frequency operation and 20-A or 30-A current output from a 5 mm × 7 mm package. High-frequency, low-loss switching, provided by an integrated NexFET™ power stage and optimized drivers, allows for very high-density power solutions. The PMBus interface enables the AVS through VOUT_COMMAND, flexible converter configuration, as well as key parameters monitoring including output voltage, current and an optional external temperature. Response to fault conditions can be set to either restart, latch-off or ignore depending on system requirements.
