TPS54525PWPR Texas Instruments - Yeehing Electronics

4.5V to 18V Input, 5.5-A Synchronous Step-Down Converter

Pricing (USD)

Quantity	Unit Price
1 — 99	1.818
100 — 249	1.593
250 — 999	1.117
1,000 +	0.63

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TPS54525PWPR Datasheet

More Information

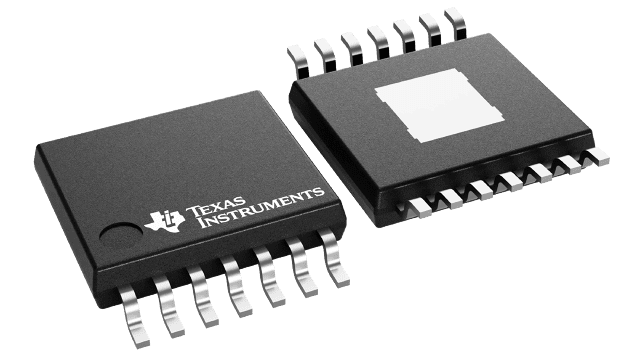

The TPS54525 is an adaptive on-time D-CAP2™ mode synchronous buck converter. The TPS54525 enables system designers to complete the suite of various end equipment’s power bus regulators with a cost effective, low component count, low standby current solution. The main control loop for the TPS54525 uses the D-CAP2™ mode control which provides a very fast transient response with no external compensation components. The TPS54525 also has a proprietary circuit that enables the device to adopt to both low equivalent series resistance (ESR) output capacitors, such as POSCAP or SP-CAP, and ultra-low ESR ceramic capacitors. The device operates from 4.5-V to 18-V VIN input. The output voltage can be programmed between 0.76 V and 5.5 V. The device also features an adjustable soft start time and a power good function. The TPS54525 is available in the 14-pin HTSSOP package, and designed to operate from –40°C to 85°C.
