Texas Instruments
TPS54550PWPR
TPS54550PWPR
Couldn't load pickup availability

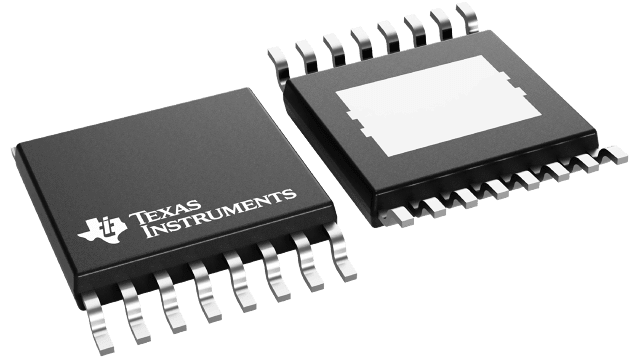

TPS54550PWPR Texas Instruments - Yeehing Electronics
4.5-V to 20-V, 6-A synchronous buck converter with low-side gate driver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.311 |
| 100 — 249 | 3.515 |
| 250 — 999 | 2.762 |
| 1,000 + | 1.64 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-16 |
| Output Voltage | Adjustable |
| Output Current | 6 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 20 V |
| Topology | Buck |
| Input Voltage MIN | 4.5 V |
| Switching Frequency | 500 kHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 150 C |
| Series | TPS54550 |
| Packaging | Reel |
| Input Voltage | 4.5 V to 20 V |
| Operating Temperature Range | - 40 C to + 150 C |
| Product | Voltage Regulators |
| Type | PWM Buck Regulator |
| Brand | Texas Instruments |
| Development Kit | TPS54550EVM-158 |
| Moisture Sensitive | Yes |
| Operating Supply Current | 9 mA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 2000 |
| Subcategory | PMIC - Power Management ICs |
| Tradename | SWIFT |
| Unit Weight | 0.002212 oz |
For more information, please refer to datasheet
Documents
| TPS54550PWPR Datasheet |
More Information
The TPS54550 is a medium output current synchronous buck PWM converter with an integrated high side MOSFET and a gate driver for an low side external MOSFET. Features include a high performance voltage error amplifier that enables maximum performance under transient conditions and flexibility in choosing the output filter inductors and capacitors. The TPS54550 has an under-voltage-lockout circuit to prevent start-up until the input voltage reaches 4.5 V; a slow-start circuit to limit in-rush currents; and a power good output to indicate valid output conditions. The synchronization feature is configurable as either an input or an output for easy 180° out of phase synchronization.
