Texas Instruments
TPS546B24ARVFR
TPS546B24ARVFR
Regular price
$2.25 USD
Regular price
Sale price
$2.25 USD
Unit price
per
Couldn't load pickup availability

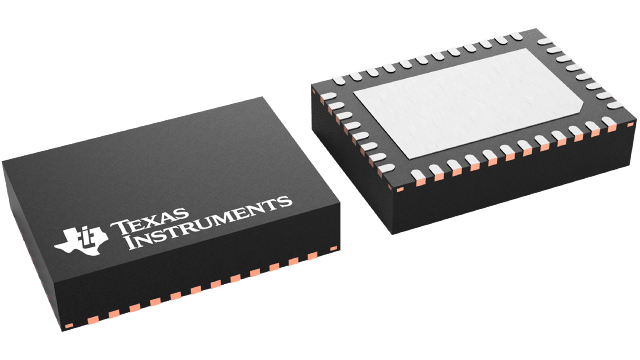

TPS546B24ARVFR Texas Instruments - Yeehing Electronics
2.95-V to 18-V, stackable 20-A synchronous SWIFT™ buck converter with pin-strapping and PMBus
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.919 |
| 100 — 249 | 4.826 |
| 250 — 999 | 3.793 |
| 1,000 + | 2.25 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TPS546B24ARVFR Datasheet |
More Information
The TPS546B24A is a highly integrated, non-isolated DC/DC converter capable of high frequency operation and 20-A current output from a 7-mm × 5-mm package. Two, three, and four TPS546B24A devices can be interconnected to provide up to 80 A on a single output. The device has an option to overdrive the internal 5-V LDO with an external 5-V supply via the VDD5 pin to improve efficiency and reduce power dissipation of the converter.
