Texas Instruments

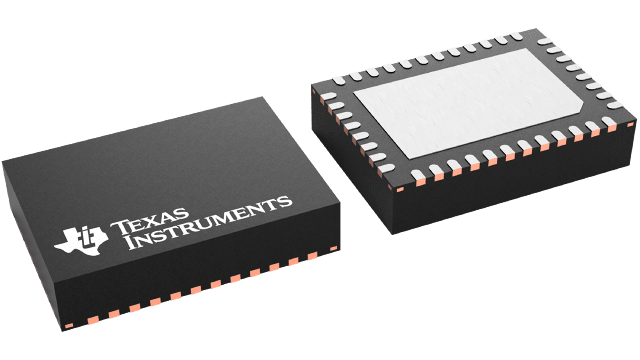

TPS546D24RVFR
TPS546D24RVFR
Regular price
$3.29 USD
Regular price
Sale price
$3.29 USD
Unit price
per
Couldn't load pickup availability
TPS546D24RVFR Texas Instruments - Yeehing Electronics
2.95-V to 16-V, stackable 40-A synchronous SWIFT™ buck converter with PMBus
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 8.639 |
| 100 — 249 | 7.043 |
| 250 — 999 | 5.535 |
| 1,000 + | 3.29 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | LQFN-40 |
| Output Voltage | 0.25 V to 5.5 V |
| Output Current | 40 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 16 V |
| Topology | Buck |
| Input Voltage MIN | 2.95 V |
| Switching Frequency | 225 kHz to 1.5 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | TPS546D24 |
| Packaging | Reel |
| Input Voltage | 2.95 V to 16 V |
| Type | PMBus Buck Converter |
| Brand | Texas Instruments |
| Shutdown | No Shutdown |
| Moisture Sensitive | Yes |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 2500 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 2.95 V |
For more information, please refer to datasheet
Documents
| TPS546D24RVFR Datasheet |
More Information
The TPS546D24 is a highly integrated, non-isolated DC/DC converter capable of high frequency operation and 40-A current output from a 7-mm × 5-mm package. Two, three, and four TPS546D24 devices can be interconnected to provide up to 160 A on a single output. The device has an option to overdrive the internal 5-V LDO with an external 5-V supply via the VDD5 pin to improve efficiency and reduce power dissipation of the converter.
