Texas Instruments
TPS548B22RVFT
TPS548B22RVFT
Regular price
$2.86 USD
Regular price
Sale price
$2.86 USD
Unit price
per
Couldn't load pickup availability

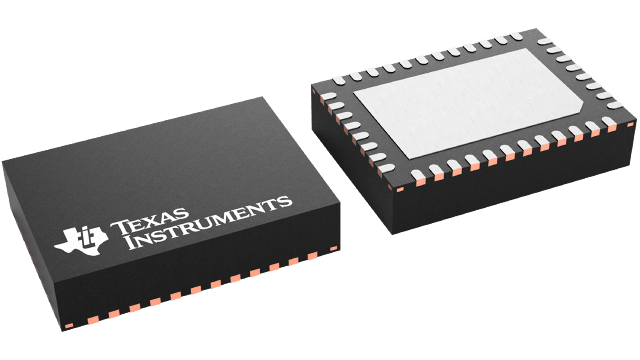

TPS548B22RVFT Texas Instruments - Yeehing Electronics
1.5-V to 18-V, 25-A synchronous SWIFT™ buck converter with differential remote sense
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.507 |
| 100 — 249 | 6.12 |
| 250 — 999 | 4.81 |
| 1,000 + | 2.86 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | E |
| Mounting Style | SMD/SMT |
| Package / Case | LQFN-40 |
| Output Voltage | 600 mV to 5.5 V |
| Output Current | 25 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 18 V |
| Topology | Buck |
| Input Voltage MIN | 1.5 V |
| Switching Frequency | 425 kHz to 1.05 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | TPS548B22 |
| Packaging | Reel |
| Input Voltage | 1.5 V to 18 V |
| Operating Temperature Range | - 40 C to + 125 C |
| Type | Synchronous Step-Down Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Development Kit | TPS548B22EVM-847 |
| Moisture Sensitive | Yes |
| Operating Supply Current | 2 mA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 1.5 V |
| Tradename | SWIFT |
| Unit Weight | 0.006145 oz |
For more information, please refer to datasheet
Documents
| TPS548B22RVFT Datasheet |
More Information
The TPS548B22 device is a compact single buck converter with adaptive on-time, D-CAP3 mode control. It is designed for high accuracy, high efficiency, fast transient response, ease-of-use, low external component count, and space-conscious power systems.
