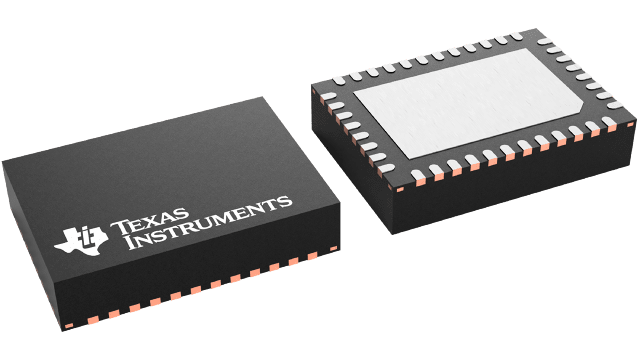

TPS548D22RVFR Texas Instruments - Yeehing Electronics
1.5-V to 16-V, 40-A synchronous SWIFT™ buck converter with differential remote sense
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 6.734 |
100 — 249 | 5.49 |
250 — 999 | 4.315 |
1,000 + | 2.56 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Switching Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | LQFN-CLIP-40 |
Output Voltage | 0.6 V to 5.5 V |
Output Current | 40 A |
Number of Outputs | 1 Output |
Input Voltage MAX | 16 V |
Topology | Buck |
Input Voltage MIN | 1.5 V |
Switching Frequency | 380 kHz to 1.25 MHz |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Series | TPS548D22 |
Packaging | Reel |
Input Voltage | 1.5 V to 16 V |
Operating Temperature Range | - 40 C to + 125 C |
Type | Synchronous Step-Down Converter |
Brand | Texas Instruments |
Shutdown | Shutdown |
Development Kit | TPS548D22EVM-784 |
Moisture Sensitive | Yes |
Operating Supply Current | 2 mA |
Product Type | Switching Voltage Regulators |
Factory Pack Quantity | 2500 |
Subcategory | PMIC - Power Management ICs |
Supply Voltage - Min | 1.5 V |
Tradename | SWIFT |
Unit Weight | 0.006392 oz |
For more information, please refer to datasheet
Documents
TPS548D22RVFR Datasheet |
More Information
The TPS548D22 device is a compact single buck converter with adaptive on-time, D-CAP3 mode control. It is designed for high accuracy, high efficiency, fast transient response, ease-of-use, low external component count and space-conscious power systems.
