Texas Instruments
TPS54917RUVT
TPS54917RUVT
Couldn't load pickup availability

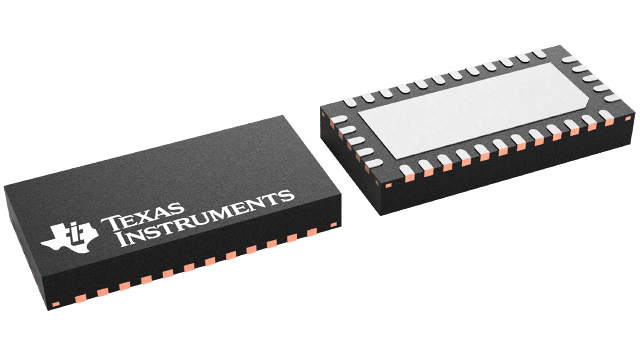

TPS54917RUVT Texas Instruments - Yeehing Electronics
3V to 4V Input, 9A Synchronous Step-Down SWIFT™ Converter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.747 |
| 100 — 249 | 3.87 |
| 250 — 999 | 3.042 |
| 1,000 + | 1.81 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-34 |
| Output Voltage | 0.9 V to 2.5 V |
| Output Current | 9 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 4 V |
| Topology | Buck |
| Input Voltage MIN | 3 V |
| Switching Frequency | 1.6 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | TPS54917 |
| Packaging | Reel |
| Height | 0.9 mm |
| Input Voltage | 3 V to 4 V |
| Length | 3.5 mm |
| Operating Temperature Range | - 40 C to + 125 C |
| Product | Voltage Regulators |
| Type | Voltage Converter |
| Width | 7 mm |
| Brand | Texas Instruments |
| Development Kit | TPS54917EVM-367 |
| Load Regulation | 0.03 % / A |
| Moisture Sensitive | Yes |
| Operating Supply Current | 11 mA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Tradename | SWIFT |
| Unit Weight | 0.002416 oz |
For more information, please refer to datasheet
Documents
| TPS54917RUVT Datasheet |
More Information
As a member of the SWIFT™ family of DC-DC regulators, the TPS54917 low-input voltage high-output current synchronous buck PWM converter offers the same features as the TPS54910 in a smaller package and higher switching frequency, which allows for a smaller total solution. Included on the substrate with the listed features are a true, high performance, voltage error amplifier that enables maximum performance under transient conditions and flexibility in choosing the output filter L and C components; an undervoltage lockout (UVLO) circuit to prevent start-up until the input voltage reaches 3 V; an internally and externally set slow-start circuit to limit in-rush currents; and a power good output useful for processor or logic reset, fault signaling, and supply sequencing.
