TPS549A20RVET Texas Instruments - Yeehing Electronics
1.5-V to 20-V, 15-A synchronous SWIFT™ buck converter with PMBus
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.329 |
| 100 — 249 | 5.975 |
| 250 — 999 | 4.696 |
| 1,000 + | 2.79 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | E |
| Mounting Style | SMD/SMT |

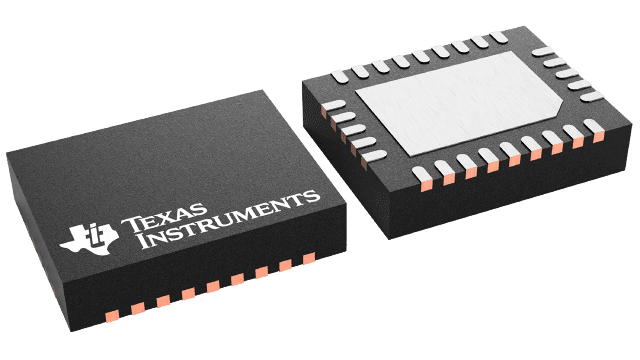

| Package / Case | VQFN-CLIP-28 |
| Output Voltage | 600 mV to 5.5 V |
| Output Current | 15 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 20 V |
| Topology | Buck |
| Input Voltage MIN | 1.5 V |
| Switching Frequency | Programmable |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | TPS549A20 |
| Packaging | Reel |
| Input Voltage | 1.5 V to 20 V |
| Operating Temperature Range | - 40 C to + 125 C |
| Type | SWIFT Converter |
| Width | 3.6 mm |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Load Regulation | 0.5 % |
| Moisture Sensitive | Yes |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Tradename | SWIFT |
For more information, please refer to datasheet
Documents
| TPS549A20RVET Datasheet |
More Information
The TPS549A20 is a small-sized, synchronous buck converter with an adaptive on-time D-CAP3 control mode. The device offers ease-of-use and low bill-of-material count for space-conscious power systems.
