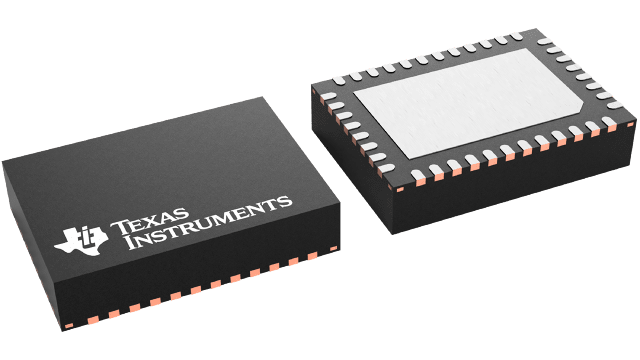

TPS549B22RVFR Texas Instruments - Yeehing Electronics
1.5-V to 18-V, 25-A synchronous SWIFT™ buck converter with differential remote sense and PMBus
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.415 |
| 100 — 249 | 6.045 |
| 250 — 999 | 4.751 |
| 1,000 + | 2.26 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Linear Voltage Regulators |
| RoHS | E |
| Mounting Style | SMD/SMT |
| Package / Case | LQFN-CLIP-40 |
| Number of Outputs | 1 Output |
| Polarity | Positive |
| Output Voltage | 0.6 V to 5.5 V |
| Output Current | 25 A |
| Output Type | Adjustable |
| Input Voltage MAX | 18 V |
| Input Voltage MIN | 1.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Load Regulation | 0.5 % |
| Line Regulation | 0.5 % |
| Quiescent Current | 700 uA |
| Series | TPS549B22 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Product | Voltage Regulators |
| Type | Synchronous Step-Down Converter |
| Brand | Texas Instruments |
| Development Kit | TPS549B22EVM-847 |
| Moisture Sensitive | Yes |
| Product Type | Linear Voltage Regulators |
| Reference Voltage | 900.4 mV |
| Factory Pack Quantity | 2500 |
| Subcategory | PMIC - Power Management ICs |
| Tradename | SWIFT |
For more information, please refer to datasheet
Documents
| TPS549B22RVFR Datasheet |
More Information
The TPS549B22 device is a compact single buck converter with adaptive on-time, D-CAP3 mode control. It is designed for high accuracy, high efficiency, fast transient response, ease-of-use, low external component count and space-conscious power systems.
