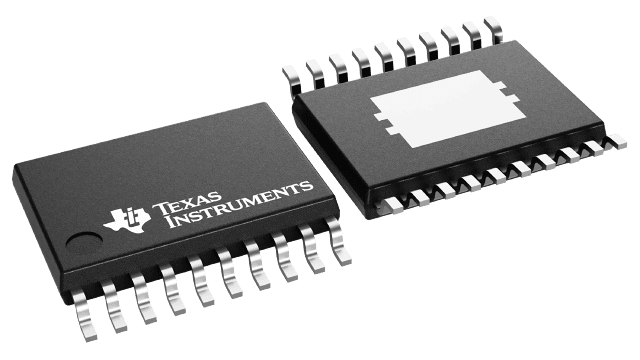

TPS55160QPWPTQ1 Texas Instruments - Yeehing Electronics

3.6-V to 36-V, 1-A output, 2-MHz, synchronous step-up and step-down converter

Pricing (USD)

Quantity	Unit Price
1 — 99	4.462
100 — 249	3.91
250 — 999	2.741
1,000 +	1.55

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TPS55160QPWPTQ1 Datasheet

More Information

The TPS5516x-Q1 family of devices is a high-voltage synchronous buck-boost DC-DC converter. The device provides a stable power-supply output from a wide varying input-power supply such as an automotive car battery. The buck-boost overlap control ensures automatic transition between step-down and step-up mode with optimal efficiency. The TPS55165-Q1 output voltage can be set to a fixed level of 5 V or 12 V. The TPS55160-Q1 and TPS55162-Q1 devices have a configurable output voltage ranging from 5.7 V to 9 V that is set by an external resistive divider.
