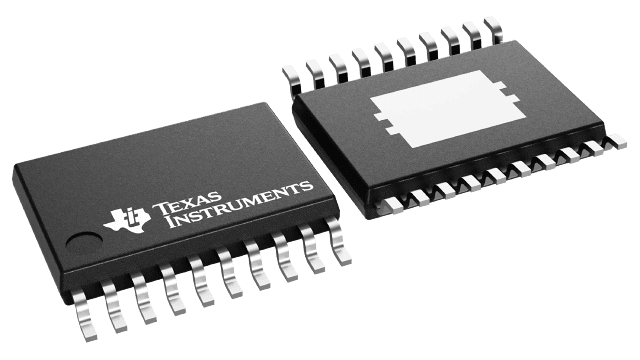

TPS55165QPWPRQ1 Texas Instruments - Yeehing Electronics

2-V to 36-V, 1-A output, 2-MHz, 5-V or 12-V fixed output voltage, step-up and step-down converter

Pricing (USD)

Quantity	Unit Price
1 — 99	3.816
100 — 249	3.344
250 — 999	2.344
1,000 +	1.32

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	HTSSOP-20
Output Voltage	5 V, 12 V
Output Current	3.5 A
Number of Outputs	1 Output
Input Voltage MAX	36 V
Topology	Boost, Buck
Input Voltage MIN	2 V
Switching Frequency	2 MHz, 2.1 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Qualification	AEC-Q100
Series	TPS55165-Q1
Packaging	Reel
Input Voltage	2 V to 36 V
Operating Temperature Range	- 40 C to + 125 C
Quiescent Current	15 uA
Type	Single Inductor, Synchronous Step-Up and Step-Down Converter
Brand	Texas Instruments
Shutdown	Shutdown
Development Kit	TPS55165Q1-EVM, TPS55160Q1-EVM
Moisture Sensitive	Yes
Product Type	Switching Voltage Regulators
Factory Pack Quantity	2000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.004586 oz

For more information, please refer to datasheet

Documents

TPS55165QPWPRQ1 Datasheet

More Information

The TPS5516x-Q1 family of devices is a high-voltage synchronous buck-boost DC-DC converter. The device provides a stable power-supply output from a wide varying input-power supply such as an automotive car battery. The buck-boost overlap control ensures automatic transition between step-down and step-up mode with optimal efficiency. The TPS55165-Q1 output voltage can be set to a fixed level of 5 V or 12 V. The TPS55160-Q1 and TPS55162-Q1 devices have a configurable output voltage ranging from 5.7 V to 9 V that is set by an external resistive divider.
