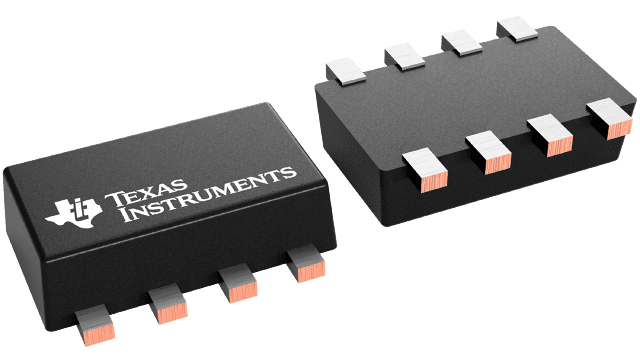

TPS562211DRLR Texas Instruments - Yeehing Electronics

4.2-V to 18-V, 2-A, synchronous buck converter with 1% accuracy, PG/SS and PFM/forced-PWM in SOT583

Pricing (USD)

Quantity	Unit Price
1 — 99	0.201
100 — 249	0.137
250 — 999	0.105
1,000 +	0.05

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

TPS562211DRLR Datasheet

More Information

The TPS562211 is a cost effective and highly flexible synchronous buck converter that provides selectable Eco-mode operation or FCCM (Force Continuous Conduction Mode) operation. A selectable Power-Good indicator or external soft start is also configurable through the MODE pin. Power sequencing is possible by correctly configuring Enable, Power-Good indicator, or external soft start. A wide input voltage range of 4.2 V to 18 V supports a wide variety of common input rails like 12 V and 15 V. It supports up to 2-A continuous output current at output voltages between 0.6 V and 7 V.
