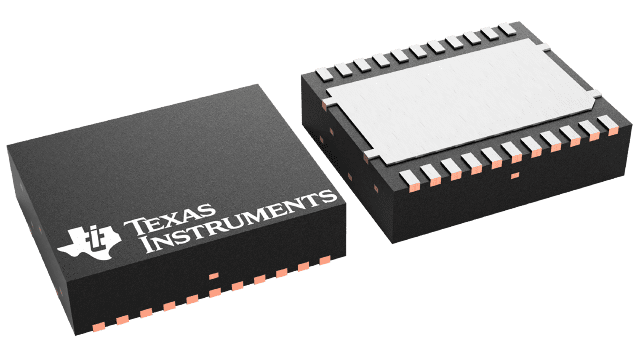

TPS56221DQPR Texas Instruments - Yeehing Electronics

4.5-V to 14-V, 25-A synchronous SWIFT™ buck converter

Pricing (USD)

Quantity	Unit Price
1 — 99	5.768
100 — 249	4.703
250 — 999	3.696
1,000 +	1.85

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	E
Mounting Style	SMD/SMT
Package / Case	LSON-CLIP-22
Output Voltage	0.6 V to 12 V
Output Current	25 A
Number of Outputs	1 Output
Input Voltage MAX	14 V
Topology	Buck
Input Voltage MIN	4.5 V
Switching Frequency	0.95 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	TPS56221
Packaging	Reel
Input Voltage	4.5 V to 14 V
Operating Temperature Range	- 40 C to + 125 C
Product	Voltage Regulators
Type	Voltage Converter
Brand	Texas Instruments
Development Kit	TPS56221EVM-579
Moisture Sensitive	Yes
Operating Supply Current	2.5 mA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	2500
Subcategory	PMIC - Power Management ICs
Tradename	SWIFT
Unit Weight	0.005372 oz

For more information, please refer to datasheet

Documents

TPS56221DQPR Datasheet

More Information

The TPS56221 device is a high-efficiency and high-current synchronous buck converter designed to operate from a supply from 4.5 V to 14 V. The device can produce an output voltage as low as 0.6 V at loads up to 25 A. Integrated NexFET™ Power MOSFETs provide a small footprint and ease of use.
