Texas Instruments
TPS56221DQPT
TPS56221DQPT
Regular price
$2.63 USD
Regular price
Sale price
$2.63 USD
Unit price
per
Couldn't load pickup availability

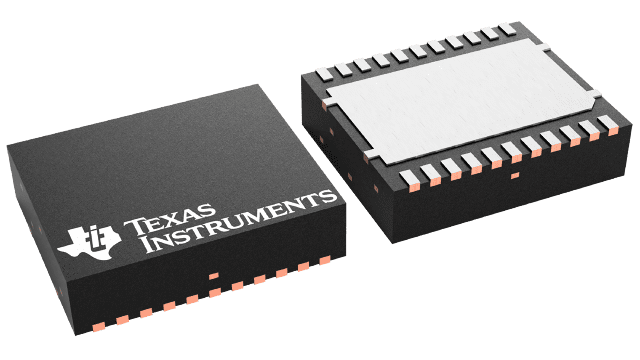

TPS56221DQPT Texas Instruments - Yeehing Electronics
4.5-V to 14-V, 25-A synchronous SWIFT™ buck converter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 6.922 |
| 100 — 249 | 5.643 |
| 250 — 999 | 4.435 |
| 1,000 + | 2.63 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | E |
| Mounting Style | SMD/SMT |
| Package / Case | LSON-CLIP-22 |
| Output Voltage | 0.6 V to 12 V |
| Output Current | 25 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 14 V |
| Topology | Buck |
| Input Voltage MIN | 4.5 V |
| Switching Frequency | 0.95 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | TPS56221 |
| Packaging | Reel |
| Input Voltage | 4.5 V to 14 V |
| Operating Temperature Range | - 40 C to + 125 C |
| Product | Voltage Regulators |
| Type | Voltage Converter |
| Brand | Texas Instruments |
| Development Kit | TPS56221EVM-579 |
| Moisture Sensitive | Yes |
| Operating Supply Current | 2.5 mA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Tradename | SWIFT |
| Unit Weight | 0.005365 oz |
For more information, please refer to datasheet
Documents
| TPS56221DQPT Datasheet |
More Information
The TPS56221 device is a high-efficiency and high-current synchronous buck converter designed to operate from a supply from 4.5 V to 14 V. The device can produce an output voltage as low as 0.6 V at loads up to 25 A. Integrated NexFET™ Power MOSFETs provide a small footprint and ease of use.
