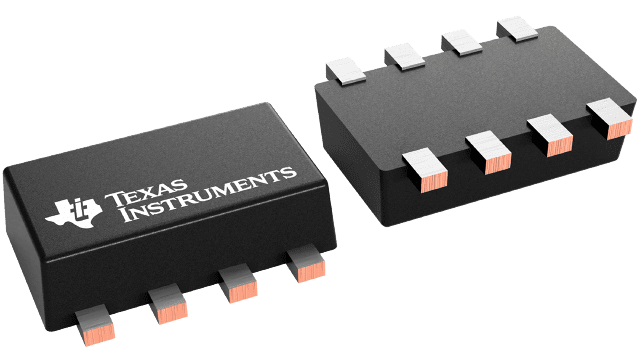

TPS563211DRLR Texas Instruments - Yeehing Electronics
4.2-V to 18-V, 3-A, synchronous buck converter with 1% accuracy, PG/SS and PFM/forced-PWM in SOT583
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.258 |
| 100 — 249 | 0.176 |
| 250 — 999 | 0.135 |
| 1,000 + | 0.06 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TPS563211DRLR Datasheet |
More Information
The TPS563211 is a cost effective and highly flexible synchronous buck converter that provides selectable Eco-mode operation or FCCM (Force Continuous Conduction Mode) operation. A selectable Power-Good indicator or external soft start is also configurable through the MODE pin. Power sequencing is possible by correctly configuring Enable, Power-Good indicator, or external soft start. A wide input voltage range of 4.2 V to 18 V supports a wide variety of common input rails like 12 V and 15 V. It supports up to 3-A continuous output current at output voltages between 0.6 V and 7 V.
