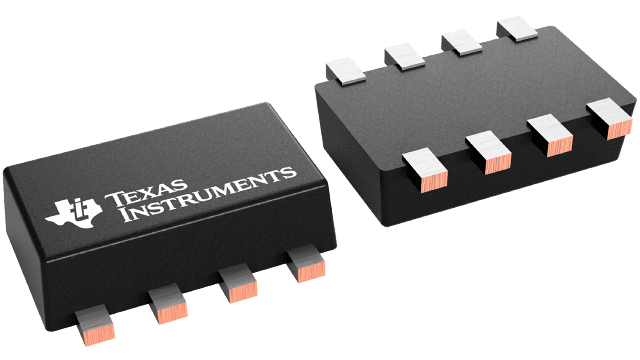

TPS563212DRLR Texas Instruments - Yeehing Electronics
4.2-V to 18-V, 3-A, 1.2-MHz, synchronous buck converter with eco-mode and selectable FCCM
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.316 |
| 100 — 249 | 0.215 |
| 250 — 999 | 0.166 |
| 1,000 + | 0.07 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TPS563212DRLR Datasheet |
More Information
The TPS563212 is a cost-effective and highly flexible synchronous buck converter that provides selectable Eco-mode operation or FCCM (force continuous conduction mode) operation. A selectable power-good indicator or external soft start is also configurable through the MODE pin. Power sequencing is possible by correctly configuring the Enable pin, power-good indicator, or external soft start. A wide input voltage range of 4.2 V to 18 V supports a wide variety of common input rails like 12 V and 15 V. The device supports up to 3-A continuous output current at output voltages between 0.6 V and 7 V.
