Texas Instruments
TPS563219ADDFT
TPS563219ADDFT
Regular price
$0.41 USD
Regular price
Sale price
$0.41 USD
Unit price
per
Couldn't load pickup availability

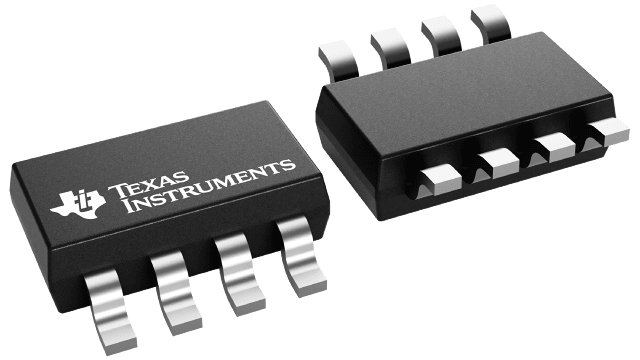

TPS563219ADDFT Texas Instruments - Yeehing Electronics
17V Input, 3A Synchronous Step-Down Regulator in SOT-23 With Power-good and Soft-start
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.301 |
| 100 — 249 | 1.075 |
| 250 — 999 | 0.772 |
| 1,000 + | 0.41 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | SOT-23-8 |
| Output Voltage | 760 mV to 7 V |
| Output Current | 3 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 17 V |
| Topology | Buck |
| Input Voltage MIN | 4.5 V |
| Switching Frequency | 650 kHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | TPS563219A |
| Packaging | Reel |
| Input Voltage | 4.5 V to 17 V |
| Operating Temperature Range | - 40 C to + 85 C |
| Type | Synchronous Step-Down Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Development Kit | TPS563219AEVM-663 |
| Operating Supply Current | 650 uA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 4.5 V |
| Tradename | D-CAP2 |
| Unit Weight | 0.001411 oz |
For more information, please refer to datasheet
Documents
| TPS563219ADDFT Datasheet |
More Information
The TPS562219A and TPS563219A are simple, easy-to-use, 2-A, 3-A synchronous step-down converters in 8 pin SOT-23 package.
