Texas Instruments
TPS563900DAPR
TPS563900DAPR
Regular price
$1.15 USD
Regular price
Sale price
$1.15 USD
Unit price
per
Couldn't load pickup availability

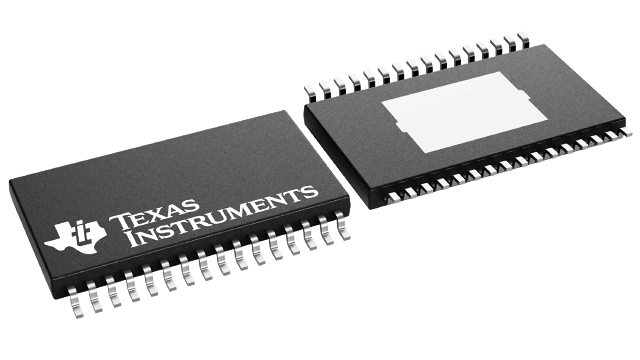

TPS563900DAPR Texas Instruments - Yeehing Electronics
18V Input, 3.5A/3.5A Dual Synchronous Step-down Regulator with Voltage Scaling
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.029 |
| 100 — 249 | 2.469 |
| 250 — 999 | 1.941 |
| 1,000 + | 1.15 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | HTSSOP-32 |
| Output Voltage | 0.68 V to 1.95 V |
| Output Current | 3.5 A |
| Number of Outputs | 2 Output |
| Input Voltage MAX | 18 V |
| Topology | Buck |
| Input Voltage MIN | 4.5 V |
| Switching Frequency | 1.6 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | TPS563900 |
| Packaging | Reel |
| Input Voltage | 4.5 V to 18 V |
| Operating Temperature Range | - 40 C to + 85 C |
| Type | Synchronous Step-Down Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Load Regulation | 0.5 % / A |
| Moisture Sensitive | Yes |
| Operating Supply Current | 1.2 mA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 2000 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 4.5 V |
| Unit Weight | 0.006388 oz |
For more information, please refer to datasheet
Documents
| TPS563900DAPR Datasheet |
More Information
The TPS563900 device is a monolithic dual-synchronous buck converter with a wide 4.5-V to 18-V operating input-voltage range that can operate in
