Texas Instruments

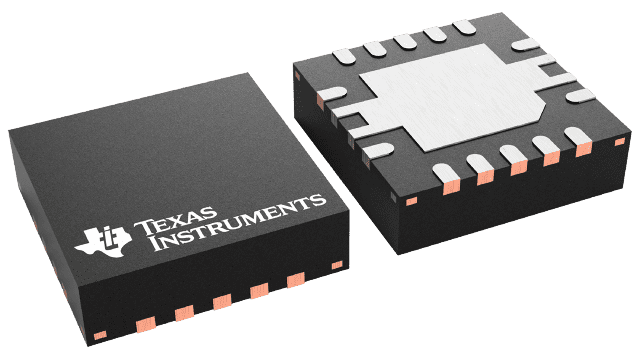

TPS56428RHLT
TPS56428RHLT
Regular price
$0.32 USD
Regular price
Sale price
$0.32 USD
Unit price
per
Couldn't load pickup availability
TPS56428RHLT Texas Instruments - Yeehing Electronics
4.5V to 18V Input, 4-A Synchronous Step-Down Converter with Advanced Eco-mode™
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.115 |
| 100 — 249 | 0.977 |
| 250 — 999 | 0.685 |
| 1,000 + | 0.32 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-14 |
| Output Voltage | 0.6 V to 7 V |
| Output Current | 4 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 18 V |
| Topology | Buck |
| Input Voltage MIN | 4.5 V |
| Switching Frequency | 650 kHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | TPS56428 |
| Packaging | Reel |
| Input Voltage | 4.5 V to 18 V |
| Operating Temperature Range | - 40 C to + 85 C |
| Quiescent Current | - |
| Type | Synchronous Buck Converter with Advanced Eco-mode? |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Development Kit | TPS56428EVM-534 |
| Load Regulation | - |
| Moisture Sensitive | Yes |
| Operating Supply Current | 250 uA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 4.5 V |
| Tradename | D-CAP2 Eco-mode |
| Unit Weight | 0.001136 oz |
For more information, please refer to datasheet
Documents
| TPS56428RHLT Datasheet |
More Information
The TPS56428 is a D-CAP2 mode synchronous buck converter which is optimized for various power bus regulation needs with a cost effective, low component count, low standby current solution.
