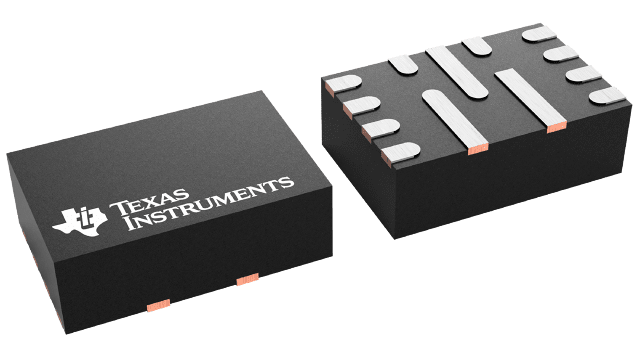

TPS566235RJNT Texas Instruments - Yeehing Electronics
4.5-V to 18-V, 6-A synchronous buck converter in 2-mm x 3-mm QFN
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.674 |
| 100 — 249 | 2.343 |
| 250 — 999 | 1.643 |
| 1,000 + | 0.93 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-13 |
| Output Voltage | 0.6 V to 7 V |
| Output Current | 6 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 18 V |
| Topology | Buck |
| Input Voltage MIN | 4.5 V |
| Switching Frequency | 600 kHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 150 C |
| Series | TPS566235 |
| Packaging | Reel |
| Input Voltage | 4.5 V to 18 V |
| Quiescent Current | 108 uA |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Moisture Sensitive | Yes |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| TPS566235RJNT Datasheet |
More Information
The TPS566235 is a cost effective, high-voltage input, high efficiency synchronous Buck converter with integrated FETs. It enables system designers to complete the suite of various end-equipment power bus regulators with a cost effective, low component count, low standby current solution.
