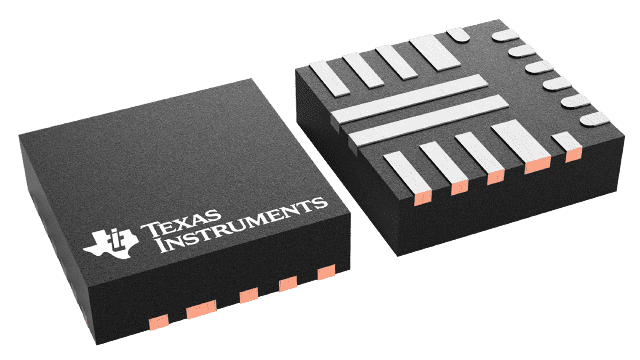

TPS568215OARNNT Texas Instruments - Yeehing Electronics
4.5-V to 17-V, 8-A synchronous SWIFT™ buck converter with D-CAP3 control and Out-of-Audio™ mode
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 3.28 |
100 — 249 | 2.874 |
250 — 999 | 2.015 |
1,000 + | 1.14 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
TPS568215OARNNT Datasheet |
More Information
The TPS568215OA is TI's smallest monolithic 8-A synchronous buck converter with an adaptive on-time D-CAP3™ control mode. The device integrates low RDS(on) power MOSFETs that enable high efficiency and it offers ease-of-use with minimal external component count for space-conscious power systems. Key features include a very accurate reference voltage, fast load transient response, Out-of-Audio mode, adjustable current limit and no requirement for external compensation. A forced continuous conduction mode helps meet tight voltage regulation accuracy requirements for performance DSPs and FPGAs. The TPS568215OA is available in a thermally enhanced 18-pin HotRod™ QFN package and is designed to operate from –40°C to 150°C junction temperature. TPS568215OA is pin to pin compatible with TPS568215 and TPS56C215 which gives the user flexibility to pick solutions from 6A to 12A in the same footprint.
