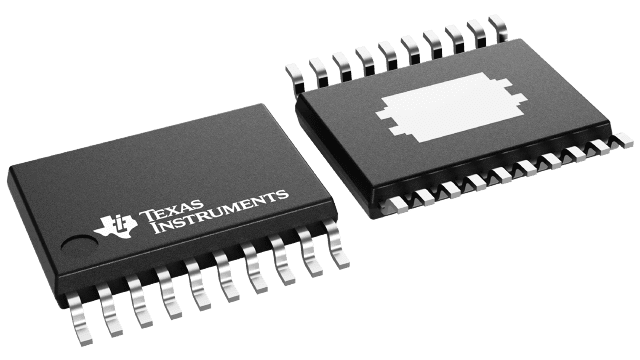

TPS56920PWPR


YeeHing #: Y012-TPS56920PWPR
Inventory: 8000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS56920PWPR Texas Instruments - Yeehing Electronics

4.5-V to 17-V, 9-A synchronous buck converter with voltage scaling

Pricing (USD)

Quantity Unit Price
1 — 99 1.862
100 — 249 1.518
250 — 999 1.193
1,000 + 0.71

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Switching Voltage Regulators
RoHS Y
Mounting Style SMD/SMT
Package / Case HTSSOP-20
Output Voltage 0.6 V to 1.87 V
Output Current 9 A
Number of Outputs 1 Output
Input Voltage MAX 17 V
Topology Buck
Input Voltage MIN 4.5 V
Switching Frequency 500 kHz
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Series TPS56920
Packaging Reel
Input Voltage 4.5 V to 17 V
Operating Temperature Range - 40 C to + 85 C
Product Switching Regulators
Type Synchronous Step-Down Regulator
Brand Texas Instruments
Moisture Sensitive Yes
Operating Supply Current 920 uA
Product Type Switching Voltage Regulators
Factory Pack Quantity 2000
Subcategory PMIC - Power Management ICs
Unit Weight 0.009408 oz

For more information, please refer to datasheet

Documents

TPS56920PWPR Datasheet

More Information

The TPS56X20 is a synchronous DC-DC converter IC (integrated circuit) with a voltage scaling control to power up micro-processors (MCUs) requiring core voltage (VCORE) tune-ups. After the initial power-up, the output voltage can be programmed/scaled by VID codes sent over an I2C compatible bus.
