TPS56C20PWP


YeeHing #: Y012-TPS56C20PWP
Inventory: 8000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TPS56C20PWP Texas Instruments - Yeehing Electronics

4.5-V to 17-V, 12-A synchronous buck converter with voltage scaling

Pricing (USD)

Quantity Unit Price
1 — 99 4.782
100 — 249 3.899
250 — 999 3.064
1,000 + 1.82

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Switching Voltage Regulators
RoHS Y
Mounting Style SMD/SMT

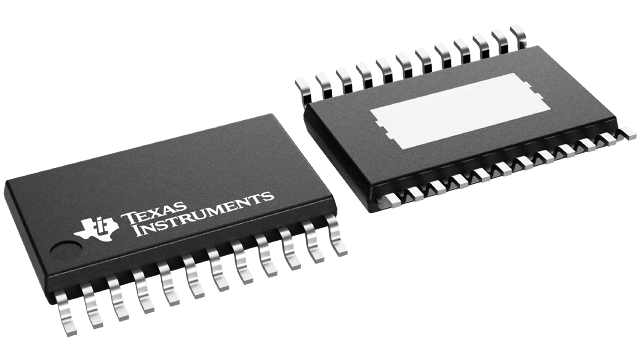

Package / Case HTSSOP-24
Output Voltage 0.6 V to 1.87 V
Output Current 12 A
Number of Outputs 1 Output
Input Voltage MAX 17 V
Topology Buck
Input Voltage MIN 4.5 V
Switching Frequency 500 kHz
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Series TPS56C20
Packaging Reel
Input Voltage 4.5 V to 17 V
Operating Temperature Range - 40 C to + 85 C
Product Switching Regulators
Type Synchronous Step-Down Regulator
Brand Texas Instruments
Moisture Sensitive Yes
Operating Supply Current 920 uA
Product Type Switching Voltage Regulators
Factory Pack Quantity 2000
Subcategory PMIC - Power Management ICs
Unit Weight 0.038731 oz

For more information, please refer to datasheet

Documents

TPS56C20PWP Datasheet

More Information

The TPS56X20 is a synchronous DC-DC converter IC (integrated circuit) with a voltage scaling control to power up micro-processors (MCUs) requiring core voltage (VCORE) tune-ups. After the initial power-up, the output voltage can be programmed/scaled by VID codes sent over an I2C compatible bus.
