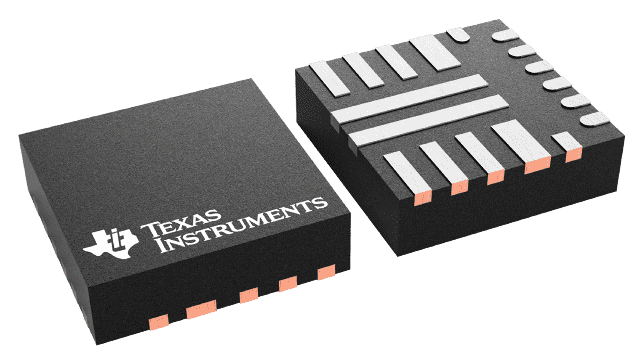

TPS56C215RNNR Texas Instruments - Yeehing Electronics
3.8-V to 17-V, 12-A synchronous SWIFT™ buck converter with D-CAP3 control
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.12 |
| 100 — 249 | 0.925 |
| 250 — 999 | 0.665 |
| 1,000 + | 0.35 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-HR-18 |
| Output Voltage | 600 mV to 5.5 V |
| Output Current | 12 A |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 17 V |
| Topology | Buck |
| Input Voltage MIN | 4.5 V |
| Switching Frequency | 1.2 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | TPS56C215 |
| Packaging | Reel |
| Input Voltage | 17 V |
| Operating Temperature Range | - 40 C to + 125 C |
| Type | Voltage Converter |
| Brand | Texas Instruments |
| Shutdown | Shutdown |
| Moisture Sensitive | Yes |
| Operating Supply Current | 800 uA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Supply Voltage - Min | 4.5 V |
| Tradename | SWIFT |
| Unit Weight | 0.000557 oz |
For more information, please refer to datasheet
Documents
| TPS56C215RNNR Datasheet |
More Information
The TPS56C215 is TIs smallest monolithic 12-A synchronous buck converter with an adaptive on-time D-CAP3 control mode. The device integrates low RDS(on) power MOSFETs that enable high efficiency and offers ease-of-use with minimum external component count for space-conscious power systems. Competitive features include a very accurate reference voltage, fast load transient response, auto-skip mode operation for light load efficiency, adjustable current limit and no requirement for external compensation. A forced continuous conduction mode helps meet tight voltage regulation accuracy requirements for performance DSPs and FPGAs. The TPS56C215 is available in a thermally enhanced 18-pin HotRod QFN package and is designed to operate from –40°C to 150°C junction temperature.
