Texas Instruments
TPS59640RSLT
TPS59640RSLT
Couldn't load pickup availability
TPS59640RSLT Texas Instruments - Yeehing Electronics
Dual channel SVID, D-CAP+; step down industrial grade controller for IMVP-7 Vcore with 0V VBoot
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.81 |
| 100 — 249 | 3.921 |
| 250 — 999 | 3.082 |
| 1,000 + | 1.83 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | Y |
| Topology | Buck |
| Number of Outputs | 2 Output |
| Input Voltage | - 0.3 V to 32 V |
| Output Voltage | - 0.3 V to 1.8 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Mounting Style | SMD/SMT |

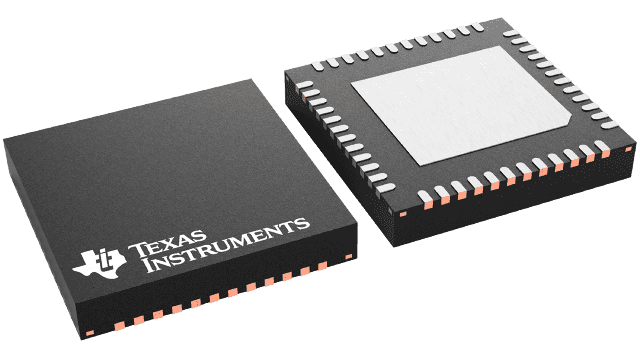

| Package / Case | VQFN-48 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 105 C |
| Series | TPS59640 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | Switching Controllers |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.004938 oz |
For more information, please refer to datasheet
Documents
| TPS59640RSLT Datasheet |
More Information
The TPS51640A, TPS59640 and TPS59641 are dual-channel, fully SVID compliant IMVP-7 step-down controllers with two integrated gate drivers. Advanced control features such as D-CAP+ architecture with overlapping pulse support (undershoot reduction, USR) and overshoot reduction (OSR) provide fast transient response, lowest output capacitance and high efficiency. All of these controllers also support single-phase operation for light loads. The full compliment of IMVP-7 I/O is integrated into the controllers including dual PGOOD signals, ALERT and VR_HOT. Adjustable control of VCORE slew rate and voltage positioning round out the IMVP-7 features. In addition, the controllers' CPU channel includes two high-current FET gate drivers to drive high-side and low-side N-channel FETs with exceptionally high speed and low switching loss. The TPS51601 or TPS51601A driver is used for the third phase of the CPU and the GPU channel.
