Texas Instruments
TPS60230RGTR
TPS60230RGTR
Couldn't load pickup availability
TPS60230RGTR Texas Instruments - Yeehing Electronics
5-channel, current-regulated 125-mA charge pump for white LED backlight in 3x3 QFN
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.986 |
| 100 — 249 | 0.758 |
| 250 — 999 | 0.558 |
| 1,000 + | 0.28 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |

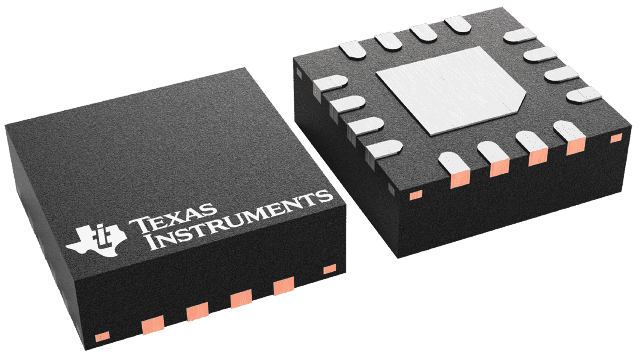

| Package / Case | VQFN-16 |
| Output Voltage | 5.5 V |
| Output Current | 125 mA |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 6.5 V |
| Topology | Boost |
| Input Voltage MIN | 2.7 V |
| Switching Frequency | 1 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | TPS60230 |
| Packaging | Reel |
| Function | Step Up |
| Input Voltage | 2.7 V to 6.5 V |
| Length | 3 mm |
| Operating Temperature Range | - 40 C to + 85 C |
| Product | Voltage Regulators |
| Type | Charge Pump |
| Width | 3 mm |
| Brand | Texas Instruments |
| Development Kit | TPS60230EVM-047 |
| Moisture Sensitive | Yes |
| Pd - Power Dissipation | 1.9 W |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000808 oz |
For more information, please refer to datasheet
Documents
| TPS60230RGTR Datasheet |
More Information
The TPS60230 charge pump is optimized for white LED supplies in backlit color display applications. The device provides a constant current, set by an external resistor, for each LED. The supply voltage ranges from 2.7 V to 6.5 V and is ideally suited for all applications powered by a single LI-Ion battery cell or three to four NiCd, NiMH, or Alkaline battery cells. The TPS60230 provides up to 25 mA per LED, for a total of 125 mA, for input voltages ranging from 3.1 V to 6.5 V. High efficiency is achieved by utilizing a 1x/1.5x fractional conversion technique in combi- nation with very low dropout current sources. Additionally, the current controlled charge pump ensures low input current ripple and EMI. Only two external 1 µF and two 0.47 µF capacitors are required to build a complete small and low cost power supply solution. The TP60230 switches at 1 MHz operating frequency and is available in a small 16-pin QFN (RGT) package to keep board space to a minimum.
