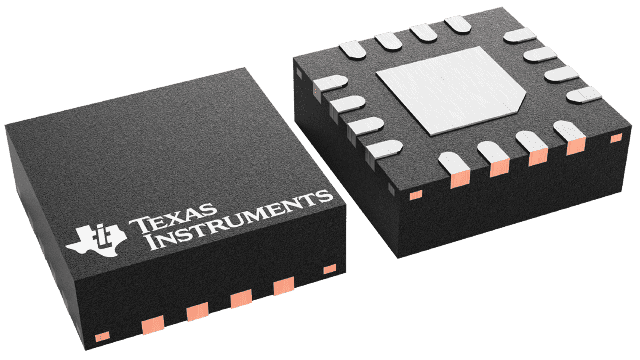

TPS60231RGTR Texas Instruments - Yeehing Electronics

3-channel, current-regulated 75-mA charge pump for white LED backlight in 3x3 QFN

Pricing (USD)

Quantity	Unit Price
1 — 99	0.857
100 — 249	0.659
250 — 999	0.485
1,000 +	0.24

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	VQFN-16
Output Voltage	5.5 V
Output Current	75 mA
Number of Outputs	1 Output
Input Voltage MAX	6.5 V
Topology	Boost
Input Voltage MIN	2.7 V
Switching Frequency	1 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Series	TPS60231
Packaging	Reel
Input Voltage	2.7 V to 6.5 V
Operating Temperature Range	- 40 C to + 85 C
Product	Voltage Regulators
Type	Charge Pump
Brand	Texas Instruments
Development Kit	TPS60231EVM-047
Moisture Sensitive	Yes
Product Type	Switching Voltage Regulators
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.000808 oz

For more information, please refer to datasheet

Documents

TPS60231RGTR Datasheet

More Information

The TPS60231 charge pump is optimized for white LED supplies in color display backlight applications. The device provides a constant current for each LED, which the initial value can be set by an external resistor. The supply voltage ranges from 2.7 V to 6.5 V and is ideally suited for all applications powered by a single LI-Ion battery cell or three to four NiCd, NiMH, or alkaline battery cells. Over an input voltage range from 3.1 V to 6.5 V, the device provides a high output current of up to 25 mA per LED with a total of 75 mA. High efficiency is achieved by utilizing a 1x/1.5x fractional conversion technique in combination with very low dropout current sources. In addition, the current controlled charge pump ensures low input current ripple and EMI. Only two external 1 µF and two 0.47 µF capacitors are required to build a complete small and low cost power supply solution. To reduce board space to a minimum, the device switches at 1 MHz operating frequency and is available in a small 16-pin QFN (RGT) package.
