Texas Instruments

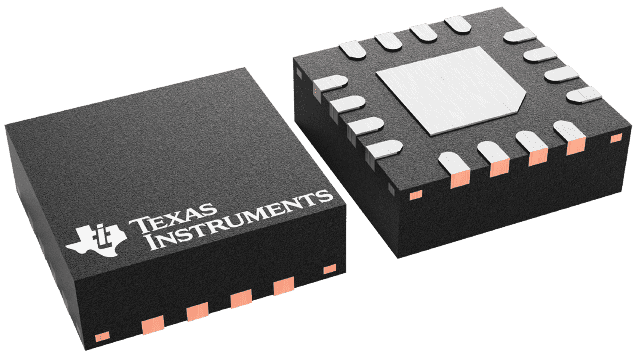

TPS60231RGTT
TPS60231RGTT
Couldn't load pickup availability
TPS60231RGTT Texas Instruments - Yeehing Electronics
3-channel, current-regulated 75-mA charge pump for white LED backlight in 3x3 QFN
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.028 |
| 100 — 249 | 0.79 |
| 250 — 999 | 0.582 |
| 1,000 + | 0.29 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-16 |
| Output Voltage | 5.5 V |
| Output Current | 75 mA |
| Number of Outputs | 1 Output |
| Input Voltage MAX | 6.5 V |
| Topology | Boost |
| Input Voltage MIN | 2.7 V |
| Switching Frequency | 1 MHz |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Series | TPS60231 |
| Packaging | Reel |
| Input Voltage | 2.7 V to 6.5 V |
| Operating Temperature Range | - 40 C to + 85 C |
| Product | Voltage Regulators |
| Type | Charge Pump |
| Brand | Texas Instruments |
| Development Kit | TPS60231EVM-047 |
| Moisture Sensitive | Yes |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.000850 oz |
For more information, please refer to datasheet
Documents
| TPS60231RGTT Datasheet |
More Information
The TPS60231 charge pump is optimized for white LED supplies in color display backlight applications. The device provides a constant current for each LED, which the initial value can be set by an external resistor. The supply voltage ranges from 2.7 V to 6.5 V and is ideally suited for all applications powered by a single LI-Ion battery cell or three to four NiCd, NiMH, or alkaline battery cells. Over an input voltage range from 3.1 V to 6.5 V, the device provides a high output current of up to 25 mA per LED with a total of 75 mA. High efficiency is achieved by utilizing a 1x/1.5x fractional conversion technique in combination with very low dropout current sources. In addition, the current controlled charge pump ensures low input current ripple and EMI. Only two external 1 µF and two 0.47 µF capacitors are required to build a complete small and low cost power supply solution. To reduce board space to a minimum, the device switches at 1 MHz operating frequency and is available in a small 16-pin QFN (RGT) package.
