Texas Instruments
TPS61029QDPNRQ1
TPS61029QDPNRQ1
Couldn't load pickup availability

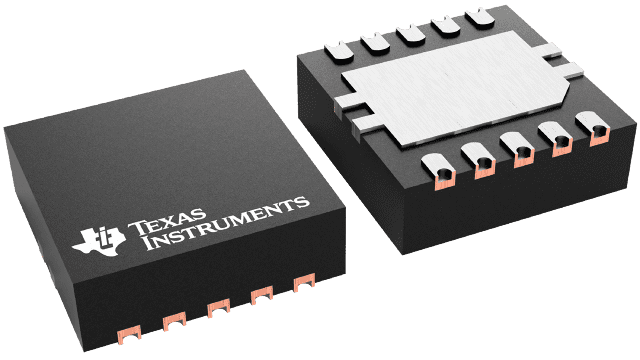

TPS61029QDPNRQ1 Texas Instruments - Yeehing Electronics
0.9-V to 5.5-V input range, 1.8-A boost converter, AEC-Q100 qualified
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.079 |
| 100 — 249 | 1.821 |
| 250 — 999 | 1.277 |
| 1,000 + | 0.72 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VSON-10 |
| Output Current | 1.8 A |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Qualification | AEC-Q100 |
| Series | TPS61029-Q1 |
| Packaging | Reel |
| Height | 1 mm |
| Length | 3 mm |
| Operating Temperature Range | - 40 C to + 125 C |
| Width | 3 mm |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 25 uA |
| Product Type | Switching Voltage Regulators |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.001058 oz |
For more information, please refer to datasheet
Documents
| TPS61029QDPNRQ1 Datasheet |
More Information
The TPS6102x devices provide a power supply solution for products powered by either a one-cell, two-cell, or three-cell alkaline, NiCd or NiMH, or one-cell Li-Ion or Li-polymer battery. Output currents can go as high as 200 mA while using a single-cell alkaline, and discharge it down to 0.9 V. It can also be used for generating 5 V at 500 mA from a 3.3-V rail or a Li-Ion battery. The boost converter is based on a fixed frequency, pulse-width-modulation (PWM) controller using a synchronous rectifier to obtain maximum efficiency. At low load currents, the converter enters the Power Save Mode to maintain a high efficiency over a wide load current range. The Power Save Mode can be disabled, forcing the converter to operate at a fixed switching frequency. The maximum peak current in the boost switch is limited to a value of 800 mA, 1500 mA or 1800 mA depending on the device version.
