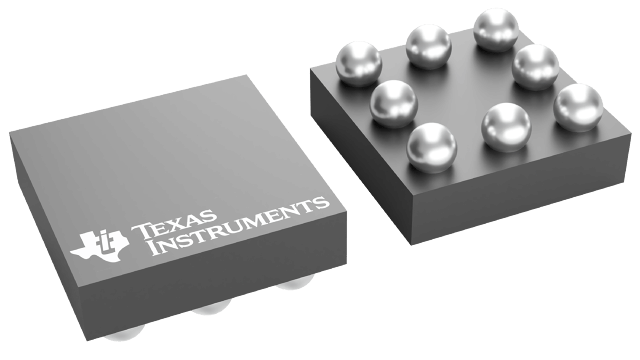

TPS61060YZFT Texas Instruments - Yeehing Electronics
15V, 400mA switch, 1MHz boost converter w/brightness control for white LED power Supplies
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 1.566 |
100 — 249 | 1.293 |
250 — 999 | 0.929 |
1,000 + | 0.49 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | LED Lighting Drivers |
RoHS | Y |
Input Voltage | - 0.3 V to 7 V |
Supply Current - Max | 400 mA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | DSBGA-8 |
Series | TPS61060 |
Packaging | Reel |
Features | Brightness Control/Dimming, Load Disconnect During Shutdown |
Height | 0.3 mm |
Length | 2.15 mm |
Operating Temperature Range | - 40 C to + 85 C |
Width | 2.15 mm |
Brand | Texas Instruments |
High Level Output Current | 0.06 A |
Product Type | LED Lighting Drivers |
Factory Pack Quantity | 250 |
Subcategory | Driver ICs |
Unit Weight | 0.000081 oz |
For more information, please refer to datasheet
Documents
TPS61060YZFT Datasheet |
More Information
The TPS6106x is a high-frequency, synchronous boost converter with constant current output to drive up to 5 white LEDs. For maximum safety, the device features integrated overvoltage and an advanced short-circuit protection when the output is shorted to ground. The device operates with 1-MHz fixed switching frequency to allow for the use of small external components and to simplify possible EMI problems. The device comes with three different overvoltage protection thresholds (14 V/18 V/23 V) to allow inexpensive and small-output capacitors with lower voltage ratings. The LED current is initially set with the external sense resistor Rs, and the feedback voltage is regulated to 500 mV or 250 mV, depending on the ILED pin configuration. Digital brightness control is implemented by applying a simple digital signal to the ILED pin. Alternatively, a PWM signal up to 1 kHz can be applied to the enable pin to control the LED brightness. During shutdown, the output is disconnected from the input to avoid leakage current through the LEDs.
