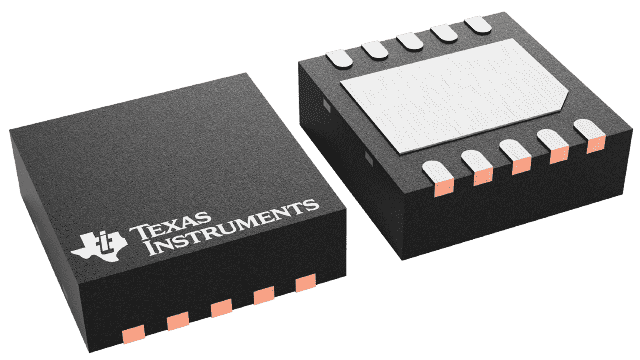

TPS61087QWDRCRQ1 Texas Instruments - Yeehing Electronics

18.5-V, 3.2-A, 650-kHz, 1.2-MHz step-up DC/DC converter with forced PWM mode, AEC-Q100 qualified

Pricing (USD)

Quantity	Unit Price
1 — 99	1.144
100 — 249	0.933
250 — 999	0.733
1,000 +	0.44

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	VSON-10
Output Voltage	3 V to 18.5 V
Output Current	4 A
Number of Outputs	1 Output
Input Voltage MAX	6 V
Topology	Boost
Input Voltage MIN	2.5 V
Switching Frequency	650 kHz, 1.2 MHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Qualification	AEC-Q100
Series	TPS61087-Q1
Packaging	Reel
Input Voltage	2.5 V to 6 V
Operating Temperature Range	- 40 C to + 125 C
Quiescent Current	75 uA
Type	Step-Up DC/DC Converter
Brand	Texas Instruments
Shutdown	Shutdown
Load Regulation	0.11 %/A
Moisture Sensitive	Yes
Operating Supply Current	75 uA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	2.5 V
Unit Weight	0.000691 oz

For more information, please refer to datasheet

Documents

TPS61087QWDRCRQ1 Datasheet

More Information

The TPS61087-Q1 is a high-frequency, high-efficiency DC-to-DC converter with an integrated 3.2‑A, 0.13-Ω power switch that is capable of providing an output voltage up to 18.5 V. The selectable frequency of 650 kHz or 1.2 MHz allows the use of small external inductors and capacitors, and provides fast transient response. The external compensation allows optimizing the application for specific conditions. A capacitor connected to the soft-start pin minimizes inrush current at start-up.
